Keysight (Agilent)

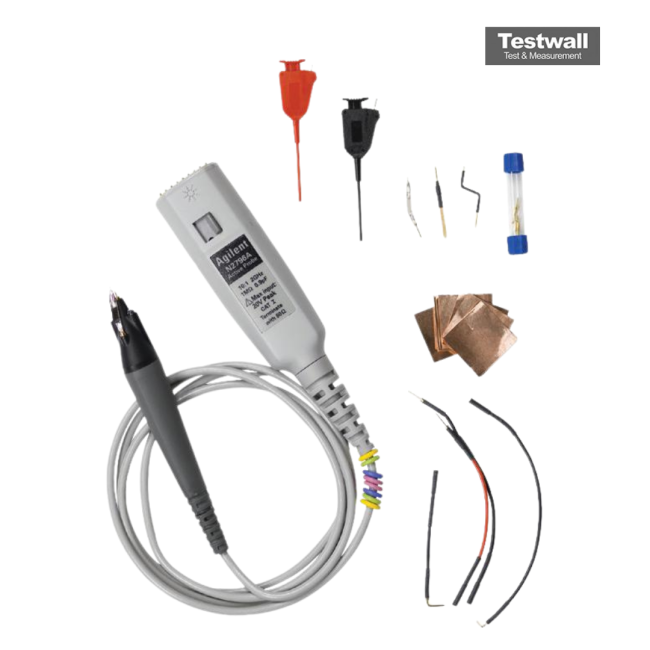

Keysight (Agilent) N2796A
Single-ended Active Probe 2GHz
2 GHz Bandwidth
±8 V (with 10:1 attenuation), ±0.8 V (with 1:1 attenuation) Input Voltage Range
1:1 and 10:1 selectable Attenuation Ratio
1 MΩ || 0.9 pF Input Impedance
175 ps Rise Time
| Attribute | Value |
|---|---|
| Bandwidth | 2 GHz |
| Input Voltage Range | ±8 V (with 10:1 attenuation), ±0.8 V (with 1:1 attenuation) |
| Attenuation Ratio | 1:1 and 10:1 selectable |
| Input Impedance | 1 MΩ || 0.9 pF |
| Rise Time | 175 ps |
| Dynamic Range | ±0.8 V (1:1), ±8 V (10:1) |
| Connector Type | SMA (output), probe tip (input) |
| Operating Temperature | 0°C to 55°C |
| Probe Type | Active Single-Ended Probe |
| Compatible Oscilloscopes | Keysight InfiniiVision and Infiniium series oscilloscopes |
| Model | N2796A |
|---|
Keysight (Agilent) N2796A Single-ended Active Probe 2GHz Description: Keysight (Agilent) N2796A Single-ended Active Probe 2GHz
