Keysight (Agilent) N2848A
InfiniiMax III QuickTip Probe Head
Keysight InfiniiVision and Infiniium Series Oscilloscopes Compatibility
Passive Voltage Probe Accessory / Probe Deskew and Performance Verification Kit Probe Type
Deskew and performance verification for single-ended and differential probes Primary Function
Fast-edge signal for probe deskew calibration Signal Output
Approximately 50 ps or less (typical) Rise Time
| Attribute | Value |
|---|---|
| Compatibility | Keysight InfiniiVision and Infiniium Series Oscilloscopes |
| Probe Type | Passive Voltage Probe Accessory / Probe Deskew and Performance Verification Kit |
| Primary Function | Deskew and performance verification for single-ended and differential probes |
| Signal Output | Fast-edge signal for probe deskew calibration |
| Rise Time | Approximately 50 ps or less (typical) |
| Output Amplitude | Approximately 200 mV into 50 Ω |
| Connector Type | SMA output connector |
| Power Source | Powered via oscilloscope probe power connector |
| Included Accessories | SMA cable, coaxial adapter, and deskew fixture |
| Operating Temperature Range | 0°C to 55°C (32°F to 131°F) |
Keysight (Agilent) N2848A Options:
- N2848A - N2849A - InfiniiMax III QuickTip tips (Set of 4 tips)
- N2848A - N2803A - 30 GHz InfiniiMax III probe amplifier
- N2848A - N2802A - 25 GHz InfiniiMax III probe amplifier
- N2848A - N7003A - 20 GHz InfiniiMax III+ probe amplifier
- N2848A - N2801A - 20 GHz InfiniiMax III probe amplifier
- N2848A - N7002A - 16 GHz InfiniiMax III+ probe amplifier
- N2848A - N7001A - 13 GHz InfiniiMax III+ probe amplifier
- N2848A - N2832A - 13 GHz InfiniiMax III+ probe amplifier
- N2848A - N7000A - 8 GHz InfiniiMax III+ probe amplifier
- N2848A - N2831A - 8 GHz InfiniiMax III+ probe amplifier
- N2848A - N2830A - 4 GHz InfiniiMax III+ probe amplifier
- N2848A - N5445A - InfiniiMax III browser head
- N2848A - N5476A - Replacement browser probe tips (set of 4)
- N2848A - N5439A - InfiniiMax III ZIF probe head
- N2848A - N5440A - Ceramic ZIF tips 450 Ω (set of 5 with plastic sporks)
- N2848A - N5447A - Ceramic ZIF tips 200 Ω (set of 5 with plastic sporks)
- N2848A - N2838A - PC board ZIF tips 450 Ω (set of 5 with plastic sporks)
- N2848A - N5444A - InfiniiMax III 2.92 mm/3.5 mm/SMA probe head
- N2848A - N5448B - Phase matched cable pair, 25 cm, 2.92 mm (m) to 2.92 mm (m)
- N2848A - N2823A - Phase matched cable pair, 1 m, 2.92 mm (m) to 2.92 mm (m)
- N2848A - N2836A - InfiniiMax III 26 GHz solder-in probe head
- N2848A - N2836-68701 - Damping resistor replacement tips (for N2836A)
- N2848A - MX0109A - InfiniiMax III 26 GHz Extreme temperature solder-in probe head
- N2848A - N2835A - InfiniiMax III differential connectivity kit
- N2848A - N5442A - Precision BNC adapter (50 Ω)
- N2848A - N5449A - High impedance probe adapter (includes N2873A passive probe)
- N2848A - N5477A - Sampling scope adapter for Keysight 86100C DCA-J
- N2848A - N1022B - Probe adapter for InfiniiMax III+ amp with 86100C DCA-J
- N2848A - MX0104A - Performance verification and deskew fixture
- N2848A - MX0104A-001 - Plastic stand option for MX0104A
- N2848A - N2787A - 3D probe positioner
- N2848A - E2655C - Performance verification and deskew fixture for InfiniiMax III+ ≤13 GHz and InfiniiMax I/II
- N2848A - N2852A - AutoProbe II to AutoProbe III interface adapter for Infiniium UXR Series
- N2848A - N5446A-001 - 16 to 20 GHz bandwidth upgrade
- N2848A - N5446A-002 - 20 to 25 GHz bandwidth upgrade
- N2848A - N5446A-003 - 25 to 30 GHz bandwidth upgrade
- N2848A - N5446A-004 - 16 to 25 GHz bandwidth upgrade
- N2848A - N5446A-005 - 16 to 30 GHz bandwidth upgrade
- N2848A - N5446A-006 - 20 to 30 GHz bandwidth upgrade
- N2848A - N5450B - Extreme temperature extension cable, 1 m long
- N2848A - N2812B - High performance input cable, 2.92 mm connectors, 1 m length
- N2848A - MV-23 - Carson Optical MagniVisor
| Model | N2848A |
|---|
Keysight (Agilent) N2848A Quicktip Probe Head

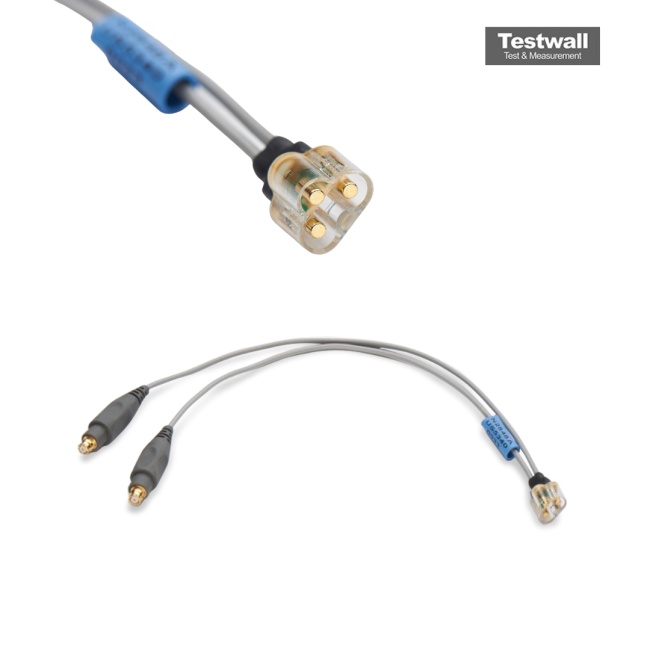

The Keysight N2848A/49A QuickTip offers the industry's first magnetically-engaged probe head and tip for a quick and secure connection, pushing the usability to the next level. The N2848A QuickTip probe head quickly snaps to the N2849A probe tip, utilizing magnets to connect to the two sides of the differential signal and ground. Multiple N2849A probe tips can be installed on a DUT, allowing quick and reliable measurement of many probe points. The QuickTip supports the InfiniiMode probing when used with the InfiniiMax III+ probe amp and supports differential probing with the InfiniiMax III probe amp.
Specifications for the Keysight (Agilent) N2848A Quicktip Probe Head Include:
| Bandwidth (w/InfiniiMax III amp) | 16 GHz |
| Bandwidth (w/InfiniiMax III+ amp) | 13 GHz |
