Keysight (Agilent) N4693D
| Attribute | Value |
|---|---|
| Frequency Range | 0.01 MHz to 67 GHz |
| Connector Type | 2.4 mm (male) |
| Number of Ports | 2-Port |
| Calibration Type | Electronic Calibration (ECal) Module |
| Impedance | 50 Ohm |
| Insertion Loss | < 6 dB typical |
| Return Loss | > 20 dB typical |
| Operating Temperature | 0°C to 55°C |
| Storage Temperature | -40°C to 70°C |
| Interface Compatibility | Compatible with Keysight PNA, PNA-X, ENA Series Vector Network Analyzers |
Keysight (Agilent) N4693D Options:
- N4693D - 0DC - Starts from DC
- N4693D - 100 - Starts from 10 MHz
- N4693D - F0F - Both connectors are female on module
- N4693D - M0M - Both connectors are male on module
- N4693D - M0F - 1 female and 1 male connector on module
- N4693D - 1A7 - Calibration + Uncertainties + Guardbanding (Not Accredited)
- N4693D - A6J - ANSI Z540-1-1994 calibration
- N4693D - UK6 - Commercial calibration certificate test data
- N4693D - 00A - Add 2.4 mm adapters
| Model | N4693D |
|---|

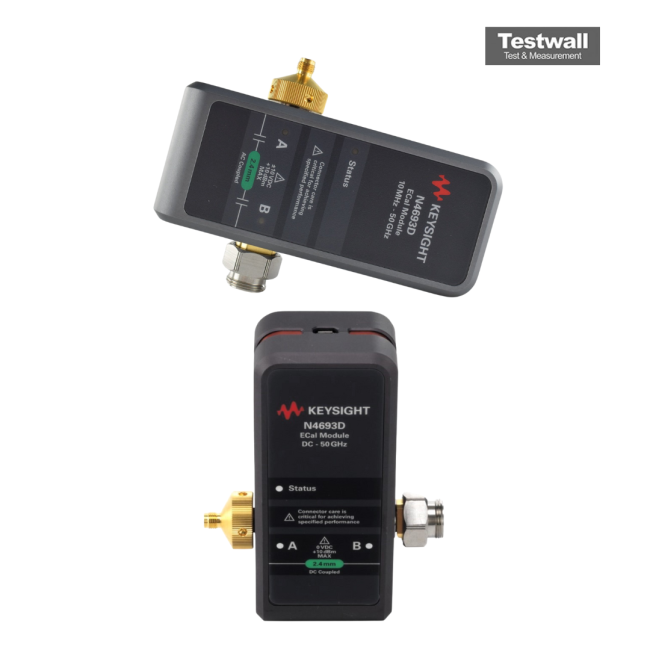

The Keysight (Agilent) N4693D is a high-precision 2-port Electronic Calibration (ECal) module designed for microwave calibration up to 50 GHz using 2.4 mm connectors. It is compatible with ENA, PNA, PXI VNA, and FieldFox vector network analyzers. The unit enables rapid, reliable calibration through USB-controlled automation, significantly reducing calibration time and operator error. Available with various connector configurations and includes a secure plastic storage case.
Ideal for fast and accurate VNA calibration, the N4693D streamlines two-port calibration procedures, cutting the time and complexity compared to mechanical kits.
Testwall can supply the used Keysight (Agilent) N4693D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N4693D.
