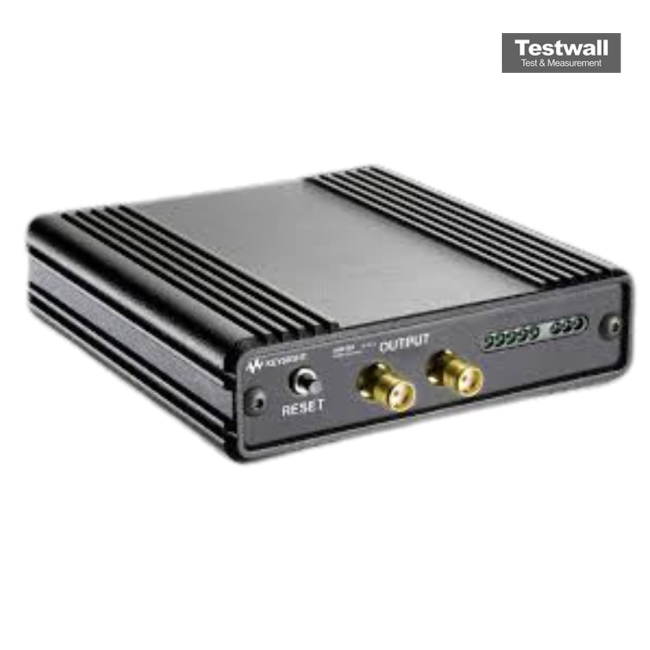

Keysight (Agilent) N4970A
Prbs Generator 50 MB/s To 12.5 Gb/s
Up to 12.5 GHz Frequency Range
Up to 12.5 Gbps Data Rate
0.3 V to 2.0 V (differential, peak-to-peak) Output Voltage Swing
Less than 35 ps (20%–80%) Rise/Fall Time
Less than 1 ps RMS (intrinsic) Jitter (RMS)
| Attribute | Value |
|---|---|
| Frequency Range | Up to 12.5 GHz |
| Data Rate | Up to 12.5 Gbps |
| Output Voltage Swing | 0.3 V to 2.0 V (differential, peak-to-peak) |
| Rise/Fall Time | Less than 35 ps (20%–80%) |
| Jitter (RMS) | Less than 1 ps RMS (intrinsic) |
| Output Impedance | 50 Ohms (differential) |
| Operating Temperature | 0°C to 55°C |
| Interface/Connectivity | USB 2.0 and LAN (LXI compliant) |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Supported Standards | PRBS patterns (PRBS7, PRBS15, PRBS23, PRBS31) and user-defined patterns |
Keysight (Agilent) N4970A Prbs Generator 50 MB/s To 12.5 Gb/s Options:
- N4970A - 010 - Extended Amplitude Range
- N4970A - 301 - 10.66423 GHZ
- N4970A - 302 - 10.51875 GHZ
- N4970A - 303 - 11.09573 GHZ
- N4970A - 304 - 9.95328 GHZ
- N4970A - 305 - 10.709225 GHZ
- N4970A - 306 - 10.3125 GHZ
| Model | N4970A |
|---|
Keysight (Agilent) N4970A Prbs Generator 50 MB/s To 12.5 Gb/s Description: Keysight (Agilent) N4970A Prbs Generator 50 MB/s To 12.5 Gb/s
