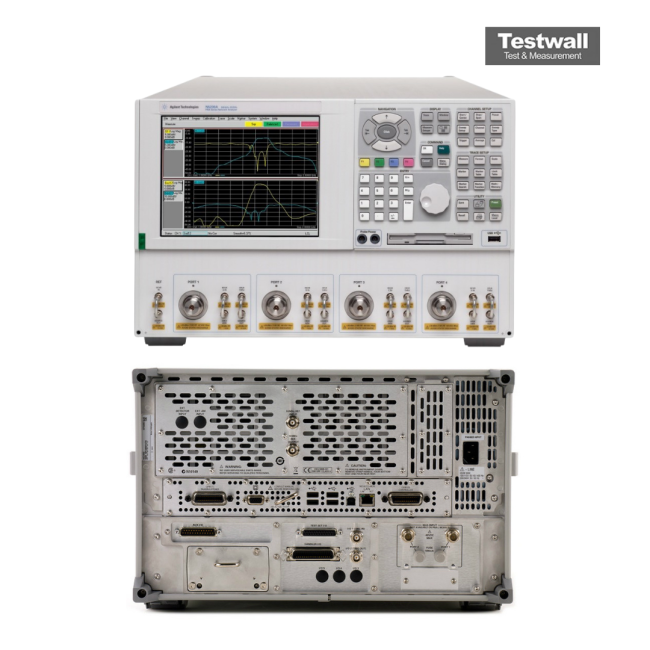

Keysight (Agilent) N5230A PNA-L Network Analyzer, 2-ports, up to 6, 13.5, 20, 40, or 50 GHz Network Analyser
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 6 GHz, 13.5 GHz, 20 GHz, 40 GHz, or 50 GHz (model dependent) |
| Number of Ports | 2 ports (upgradeable to 4 ports) |
| Dynamic Range | Up to 122 dB (at 10 Hz IF bandwidth) |
| Output Power Range | -85 dBm to +10 dBm (frequency dependent) |
| IF Bandwidth | 1 Hz to 40 kHz |
| Trace Noise | Less than 0.004 dB RMS (at 10 Hz IF bandwidth) |
| Connector Type | 3.5 mm (up to 26.5 GHz), 2.4 mm (40 GHz and 50 GHz models) |
| Number of Data Points | 1 to 32,001 points per sweep |
| Measurement Parameters | S-parameters, impedance, admittance, group delay, phase, magnitude |
| Power Supply | 100–240 V AC, 50/60 Hz, 350 W maximum |
Keysight (Agilent) N5230A PNA-L Network Analyzer, 2-ports, up to 6, 13.5, 20, 40, or 50 GHz Network Analyser Options:
- N5230A - 020 - Standard test set and standard power range, 300 kHz to 6 GHz
- N5230A - 025 - Configurable test set and extended power range, 300 kHz to 6 GHz
- N5230A - 120 - Standard test set and standard power range, 300 kHz to 13.5 GHz
- N5230A - 125 - Configurable test set and extended power range, 300 kHz to 13.5 GHz
- N5230A - 220 - Standard test set and standard power range, 10 MHz to 20 GHz
- N5230A - 225 - Configurable test set and extended power range, 10 MHz to 20 GHz
- N5230A - 420 - Standard test set and standard power range, 10 MHz to 40 GHz
- N5230A - 425 - Configurable test set and extended power range, 10 MHz to 40 GHz
- N5230A - 520 - Standard test set and standard power range, 10 MHz to 50 GHz
- N5230A - 525 - Configurable test set and extended power range, 10 MHz to 50 GHz
- N5230A - 080 - Noise figure measurement capability
| Model | N5230A |
|---|
The Keysight (Agilent) N5230A PNA-L Network Analyzer is a versatile and cost-effective instrument featuring integrated 2/4-port balanced measurements, 103 dB dynamic range, and less than 0.004 dB trace noise. With a fast 4.5 μs/point measurement speed, support for 32 channels and 16,001 points, it ensures high-resolution and reliable network characterization. Automatic port extension allows accurate in-fixture measurements, and an optional second internal source supports amplifier intermodulation and mixer conversion loss tests.
Ideal for RF component testing, this analyzer supports precise S-parameter measurements and intermodulation analysis for wide frequency ranges.
Testwall can supply the used Keysight (Agilent) N5230A PNA-L Network Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N5230A PNA-L Network Analyzer.
