Keysight (Agilent)

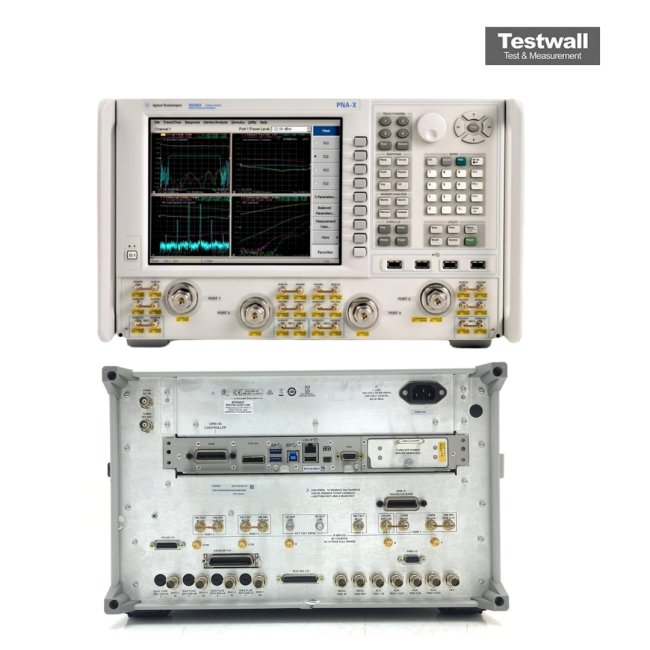

Keysight (Agilent) N5245AS
10MHz To 50GHz Vector Network Analyzer
10 MHz to 50 GHz Frequency Range
4 Number of Ports
Up to 122 dB Dynamic Range
-85 dBm to +13 dBm Output Power Range
0.004 dB RMS Trace Noise (Magnitude)
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 50 GHz |
| Number of Ports | 4 |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -85 dBm to +13 dBm |
| Trace Noise (Magnitude) | 0.004 dB RMS |
| Measurement Speed | Up to 42 µs per point |
| Connector Type | 2.4 mm (male) |
| IF Bandwidth Range | 1 Hz to 15 MHz |
| System Type | PNA-X Series Vector Network Analyzer |
| Power Supply | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) N5245AS Options:
- N5245A - 029 - Adds hardware and firmware for high-accuracy noise figure measurements (requires Option 224 or 423)
- N5245A - 200 - 2-port standard test set (includes six front-panel access loops) and power range
- N5245A - 219 - Adds 2-port extended power range, source and receiver attenuators, and bias-tees (requires Option 200)
- N5245A - 224 - Adds an internal second source, a combiner, and mechanical switches to the 2-port analyzer (requires Option 200, 219, and 080)
- N5245A - 400 - 4-port standard test set (includes twelve front-panel access loops), power range, and an internal second source (Option 080 recommended)
- N5245A - 419 - Adds 4-port extended power range, source and receiver attenuators, and bias-tees (requires Option 400)
- N5245A - 423 - Adds an internal combiner, and mechanical switches to the 4-port analyzer (requires Option 400, 419, and 080)
Keysight (Agilent) N5245AS 10MHz To 50GHz Vector Network Analyzer Description: Keysight (Agilent) N5245AS 10MHz To 50GHz Vector Network Analyzer
