Keysight (Agilent) N6705A
| Attribute | Value |
|---|---|
| Number of Output Slots | 4 |
| Maximum Output Power | 600 W total (150 W per slot) |
| Voltage Range | Up to 60 V (depending on installed modules) |
| Current Range | Up to 20 A (depending on installed modules) |
| Display | 4.3-inch color LCD touchscreen |
| Interface/Connectivity | GPIB, USB, and LAN (LXI Core 2011) |
| Arbitrary Waveform Generation | Built-in waveform generator for voltage and current output sequencing |
| Data Logging | Built-in data logger capable of capturing voltage, current, and power measurements |
| Operating Temperature | 0°C to 55°C |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Model | N6705A |
|---|

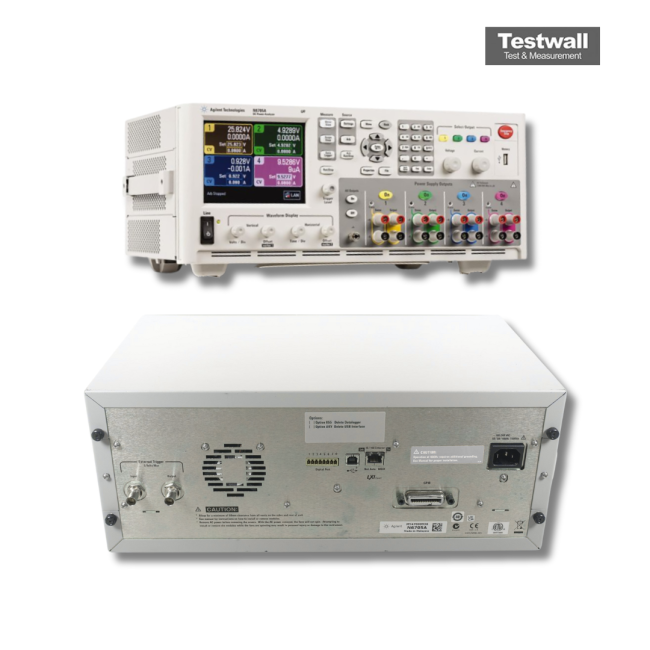

The Keysight (Agilent) N6705A DC Power Analyzer integrates up to four advanced power modules with built-in DMM, oscilloscope, arbitrary waveform generator, and datalogger functions, supporting 50W to 300W modules up to 100V and 20A. It provides rapid output transitions, 18-bit measurement resolution, and 64MB non-volatile data storage, all in a programmable 4-slot LXI-compliant mainframe.
It streamlines DC testing by eliminating external transducers and programming needs, with front-panel access and color-coded controls enhancing usability in R&D environments.
Testwall can supply the used Keysight (Agilent) N6705A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N6705A.
