Keysight (Agilent)
Keysight (Agilent) N7744A Optical Multiport Power Meter
Optical Multiport Power Meter
4 Number of Optical Ports
800 nm to 1700 nm Wavelength Range
-80 dBm to +10 dBm Power Range
±0.4 dB Power Measurement Uncertainty
Up to 200 measurements per second per channel Measurement Speed
| Attribute | Value |
|---|---|
| Number of Optical Ports | 4 |
| Wavelength Range | 800 nm to 1700 nm |
| Power Range | -80 dBm to +10 dBm |
| Power Measurement Uncertainty | ±0.4 dB |
| Measurement Speed | Up to 200 measurements per second per channel |
| Interface/Connectivity | GPIB, USB, LAN (LXI compliant) |
| Display | Built-in color LCD display |
| Connector Type | Universal Interface Adapter (UIA) compatible with FC, SC, ST, LC connectors |
| Power Supply | 100–240 VAC, 50/60 Hz |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight (Agilent) N7744A Optical Multiport Power Meter Options:
- N7744A - N7740FI - FC connector adapter for Optical Multiport Power Meter
- N7744A - N7740KI - SC connector adapter for Optical Multiport Power Meter
- N7744A - N7740LI - LC connector adapter for Optical Multiport Power Meter
- N7744A - N7740MI - MU connector adapter for Optical Multiport Power Meter
- N7744A - N7740ZI - Blank zeroing connector adapter for Optical Multiport Power Meter
- N7744A - N7740BI - Bare fiber connector adapter for Optical Multiport Power Meter
- N7744A - 81004BM - Bare fiber holder set for 0 to 400 μm fibers (4 each with gauge)
- N7744A - 81009BM - Bare fiber holder set for 400 to 900 μm fibers (4 each with gauge)
- N7744A - R-51B-001-5Z - 5-year warranty assurance plan (return to Keysight): Priority warranty service includes one-time coverage for an EOS/ESD failure
- N7744A - R-50C-011-3 - 3-year calibration assurance plan (return to Keysight): Priority calibration service covering all calibration costs for 3 years; 15% cheaper than buying stand-alone calibrations
- N7744A - R-50C-011-5 - 5-year calibration assurance plan (return to Keysight): Priority calibration service covering all calibration costs for 5 years; 20% cheaper than buying stand-alone calibrations
- N7744A - R-50C-021-3 - ANSI Z540-1-1994 up-front plan 3 year coverage
- N7744A - R-50C-021-5 - ANSI Z540-1-1994 up-front plan 5 year coverage
| Model | N7744A |
|---|

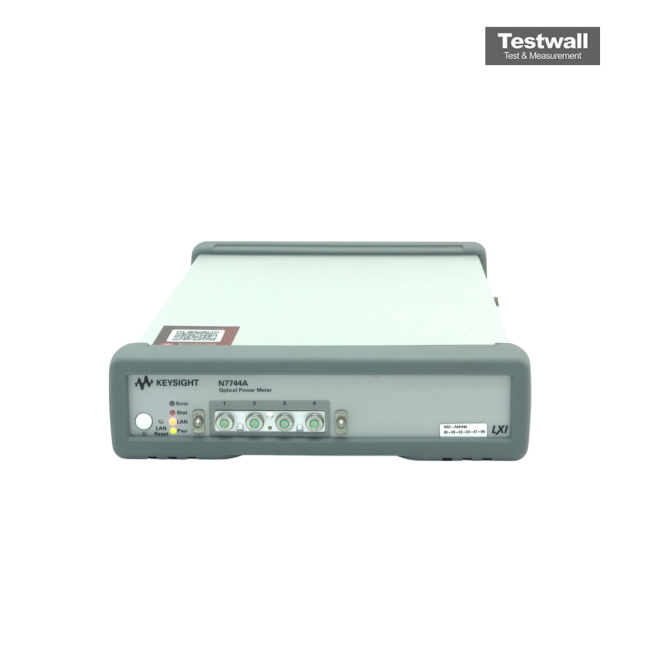

The Keysight (Agilent) N7744A is a 4-channel optical multiport power meter designed for fast, high-precision multi-port measurements, with up to 1 Mio. samples/s and 1 µs minimum averaging time.
It features InGaAs sensors, quad-adapter connectivity, and LXI-compliant control via LAN, USB, or GPIB, ideal for manufacturing setups and flexible test automation.
Testwall can supply the used Keysight (Agilent) N7744A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) N7744A.
