Keysight (Agilent)

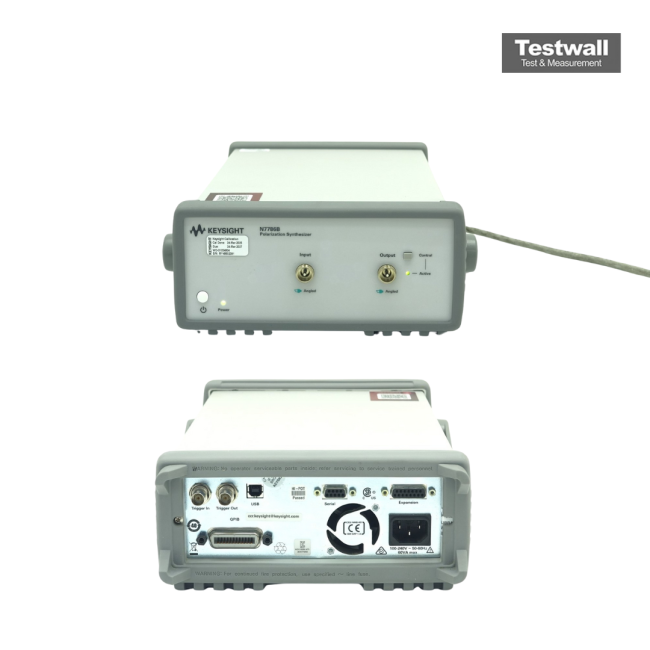

Keysight (Agilent) N7786B
Polarization Synthesizer
1260 nm to 1640 nm Wavelength Range
All Stokes states on Poincaré sphere Polarization State Generation
Up to 400 krad/s (Rayleigh speed) Polarization Scrambling Speed
> 99.9% Degree of Polarization (DOP)
< 3.5 dB typical Insertion Loss
| Attribute | Value |
|---|---|
| Wavelength Range | 1260 nm to 1640 nm |
| Polarization State Generation | All Stokes states on Poincaré sphere |
| Polarization Scrambling Speed | Up to 400 krad/s (Rayleigh speed) |
| Degree of Polarization (DOP) | > 99.9% |
| Insertion Loss | < 3.5 dB typical |
| Return Loss | > 45 dB |
| Input/Output Connector | FC/APC (angled physical contact) |
| Interface | GPIB, USB, LAN (LXI compliant) |
| Operating Temperature | 0 °C to 55 °C |
| Power Supply | 100–240 V AC, 50/60 Hz |
| Model | N7786B |
|---|
Keysight (Agilent) N7786B Polarization Synthesizer Description: Keysight (Agilent) N7786B Polarization Synthesizer
