Keysight (Agilent) N7953A
| Attribute | Value |
|---|---|
| Form Factor | AXIe Module |
| Number of Slots | 1-Slot AXIe Module |
| Function | High Performance Streaming Data Storage |
| Storage Capacity | Up to 4 TB (using removable solid-state drives) |
| Data Transfer Rate | Up to 1.6 GB/s sustained write speed |
| Interface | AXIe (AdvancedTCA Extensions for Instrumentation and Test) |
| Compatible Systems | Keysight M9505A, M9514A AXIe Chassis |
| Drive Type | Removable Solid-State Drives (SSDs) |
| Operating Temperature | 0°C to 55°C |
| Primary Application | Wideband Signal Recording and Playback, Data Logging |
Keysight (Agilent) N7953A Options:
- N7953A - 1A7 - ISO 17025 cal certificate
- N7953A - BBR - Black Box Recorder
- N7953A - UK6 - Commercial calibration with test results data
- N7953A - 900 - Power cord - United Kingdom
- N7953A - 901 - Power cord - Australia and New Zealand
- N7953A - 902 - Power cord - Continental Europe
- N7953A - 904 - Power cord - United States and Canada - 240 V
- N7953A - 906 - Power cord - Switzerland
- N7953A - 912 - Power cord - Denmark
- N7953A - 917 - Power cord - India
- N7953A - 918 - Power cord - Japan - 100 V
- N7953A - 919 - Power cord - Israel
- N7953A - 920 - Power cord - Argentina
- N7953A - 921 - Power cord - Chile
- N7953A - 922 - Power cord - China - 250 V
- N7953A - 923 - Power cord - South Africa
- N7953A - 927 - Power cord - Thailand and Philippines
- N7953A - 929 - Power cord - Japan - 250 V
- N7953A - 930 - Power cord - Brazil
- N7953A - 931 - Power cord - Taiwan
- N7953A - 932 - Power cord - Cambodia
- N7953A - PLG - Continental European power cord - only for EU DISTR W MULT PWR CORD standards
| Model | N7953A |
|---|

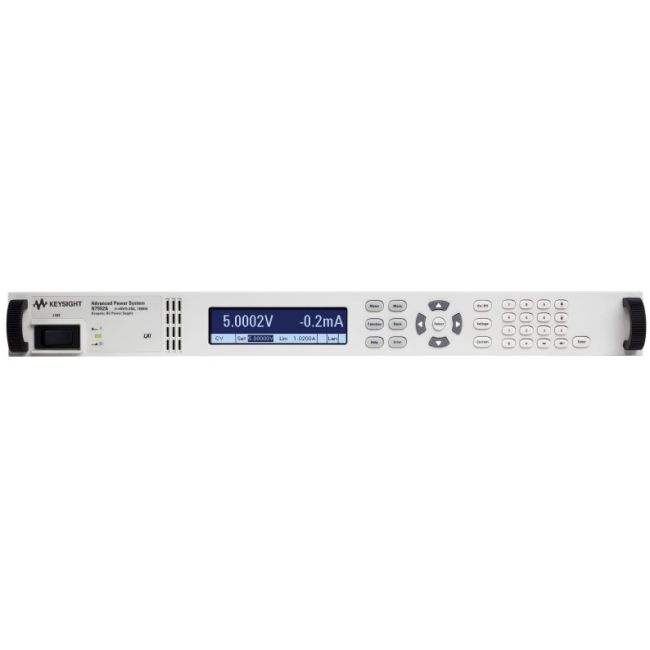

Keysight (Agilent) N7953A DC Power Supply
The Keysight Advanced Power System (APS) N7953A is a full-featured supply designed for automated test equipment (ATE) applications that benefit from high-speed dynamic sourcing and measurement. The APS is a valuable tool for increasing throughput. It provides a number of industry-leading specifications and innovative features that can help you achieve significant throughput gains in your testing. The N7953A provides simultaneous voltage and cur measurement capabilities that deliver high accuracy and resolution. When operated as standalone units, APS power supplies can continuously sink up to 10% of their rated output cur for an indefinite time.
The highly integrated Keysight N7953A enables you to accelerate your test-system throughput with industry-leading speed and precision measurements. Make measurements using two main modes: averaged or digitized. In average mode, the APS delivers high-accuracy DMM-quality voltage and cur measurements. The digitizing capability allows you to capture dynamic cur or voltage profiles at much higher resolution than an oscilloscope. The APS power supplies feature advanced and fast protection capabilities fully integrated. To complement the two quadrant operation, all APS power supplies have built-in programmable output resistance capability. This capability allows an APS power supply to simulate the internal resistance of a battery.
Specifications for the Keysight (Agilent) N7953A DC Power Supply Include:
| Voltage | 0 to 60 V |
| Current | 16.7A |
| Power | 1000W |
| Voltage and cur programming | 16-bit precision |
