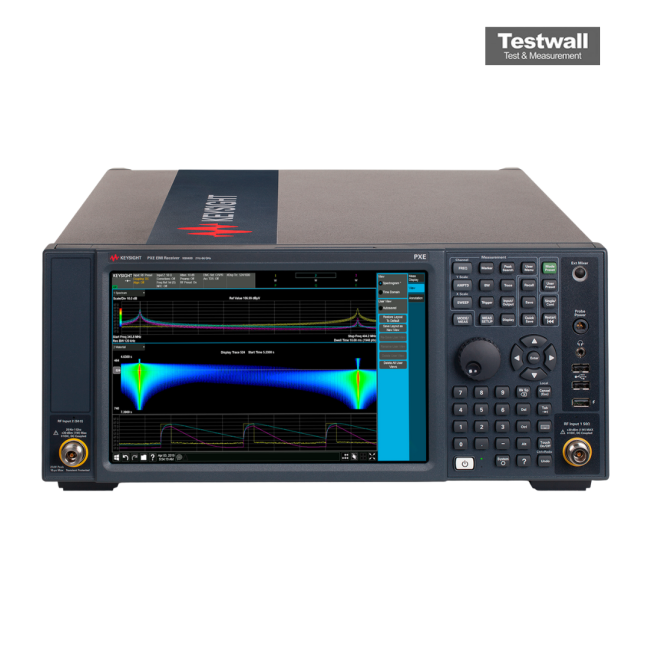

Keysight (Agilent) N9048B
1Hz to 44GHz PXE EMI Test Receiver
1 Hz to 50 GHz Frequency Range
-173 dBm/Hz (with preamp on) Displayed Average Noise Level (DANL)
-130 dBc/Hz at 1 GHz carrier, 10 kHz offset Phase Noise
Up to 97 dB Dynamic Range
±0.19 dB total amplitude accuracy Amplitude Accuracy
| Attribute | Value |
|---|---|
| Frequency Range | 1 Hz to 50 GHz |
| Displayed Average Noise Level (DANL) | -173 dBm/Hz (with preamp on) |
| Phase Noise | -130 dBc/Hz at 1 GHz carrier, 10 kHz offset |
| Dynamic Range | Up to 97 dB |
| Amplitude Accuracy | ±0.19 dB total amplitude accuracy |
| Input Impedance | 50 Ohm |
| Maximum Input Power | +30 dBm (1 W) |
| Resolution Bandwidth (RBW) | 1 Hz to 50 MHz |
| Measurement Applications | EMI pre-compliance and compliance testing, signal analysis |
| Connectivity and Interface | LAN, USB, GPIB |
| Model | N9048B |
|---|
Keysight (Agilent) N9048B 1Hz to 44GHz PXE EMI Test Receiver Description: Frequency Range: 1 Hz to 44 GHz Maximum Analysis Bandwidth: 40 MHz Maximum Real-Time BW: 350 MHz DANL @1 GHz: -174 dBm Fully CISPR 16-1-1:2019, MIL-STD-461G, ANSI C63.2 & FCC compliant Time domain scan feature significantly reduces overall test time Keysight (Agilent) N9048B 1Hz to 44GHz PXE EMI Test Receiver
