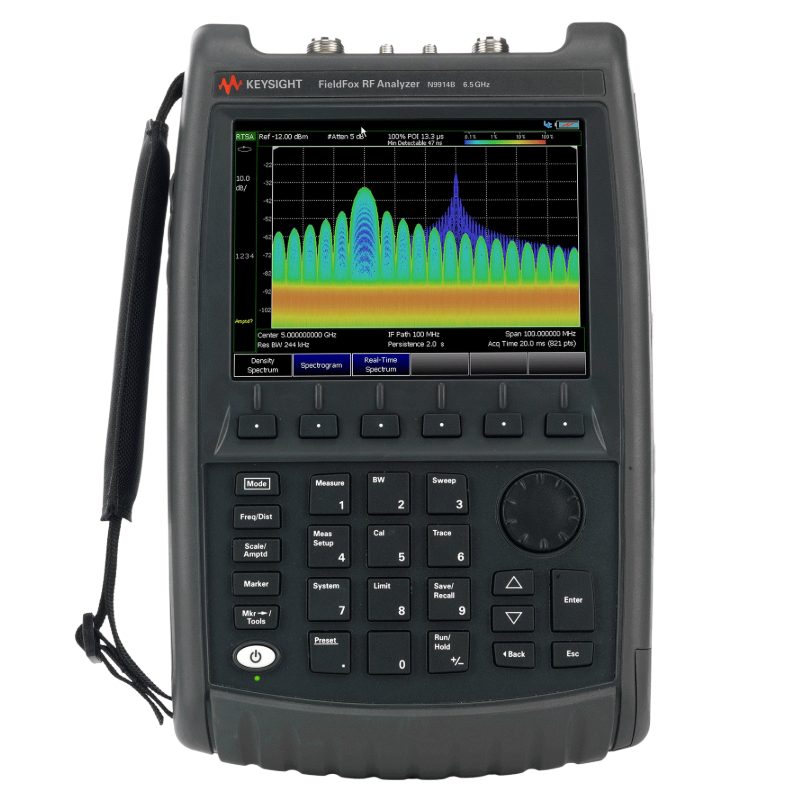

Keysight (Agilent) N9914B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 6.5 GHz |
| Dynamic Range | Up to 100 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Measurement Modes | 2-Port Vector Network Analyzer (VNA), Cable and Antenna Analyzer, Spectrum Analyzer, Power Meter, Frequency Counter |
| Display | 6.5-inch color LCD touchscreen, 640 x 480 resolution |
| Battery Life | Up to 3 hours with optional battery pack |
| Connector Type | Type-N (50 Ω) |
| Weight | 3.0 kg (6.6 lbs) |
| Operating Temperature | -10°C to +55°C |
| Interface/Connectivity | USB, LAN (Ethernet), mini-USB |
Keysight (Agilent) N9914B Options:
- N9914B - 010 - VNA Time Domain
- N9914B - 030 - Remote Control Capability
- N9914B - 209 - Extended Range Transmission Analysis (ERTA)
- N9914B - 210 - VNA Transmission/Reflection (T/R) – S11, S21 magnitude and phase
- N9914B - 211 - VNA S-parameters – S11, S21, S22, S12 magnitude and phase (2-port)
- N9914B - 212 - Mixed-Mode S-Parameters
- N9914B - 215 - TDR Cable Measurements
- N9914B - 233 - Spectrum Analyzer (on Combination Analyzers)
- N9914B - 235 - Preamplifier
- N9914B - 236 - Interference Analyzer and Spectrogram
- N9914B - 238 - Spectrum Analyzer Time Gating
- N9914B - 302 - External USB Power Sensor Support
- N9914B - 307 - Built-In GNSS (GPS+) Receiver
- N9914B - 308 - Vector Voltmeter (VVM)
- N9914B - 309 - DC Bias Variable-Voltage Source
- N9914B - 310 - Built-in Power Meter
- N9914B - 312 - Channel Scanner
- N9914B - 320 - Reflection Measurements (RL, VSWR) (applicable to SA only models)
- N9914B - 330 - Pulse Measurements
- N9914B - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9914B - 351 - I/Q Analyzer (IQA)
- N9914B - 352 - Indoor and Outdoor Mapping
- N9914B - 355 - AM/FM Analog Demodulation, Tune and Listen
- N9914B - 356 - Noise Figure (NF)
- N9914B - 358 - EMF Measurements
- N9914B - 361 - EMI Measurements
- N9914B - 370 - Over-the-Air (OTA) LTE FDD
- N9914B - 371 - Over-the-Air (OTA) LTE TDD
- N9914B - 377 - Over-the-Air (OTA) 5G TF
- N9914B - 378 - Over-the-Air (OTA) 5G NR
- N9914B - 208 - USB Power Sensor Measurements versus Frequency
| Model | N9914B |
|---|

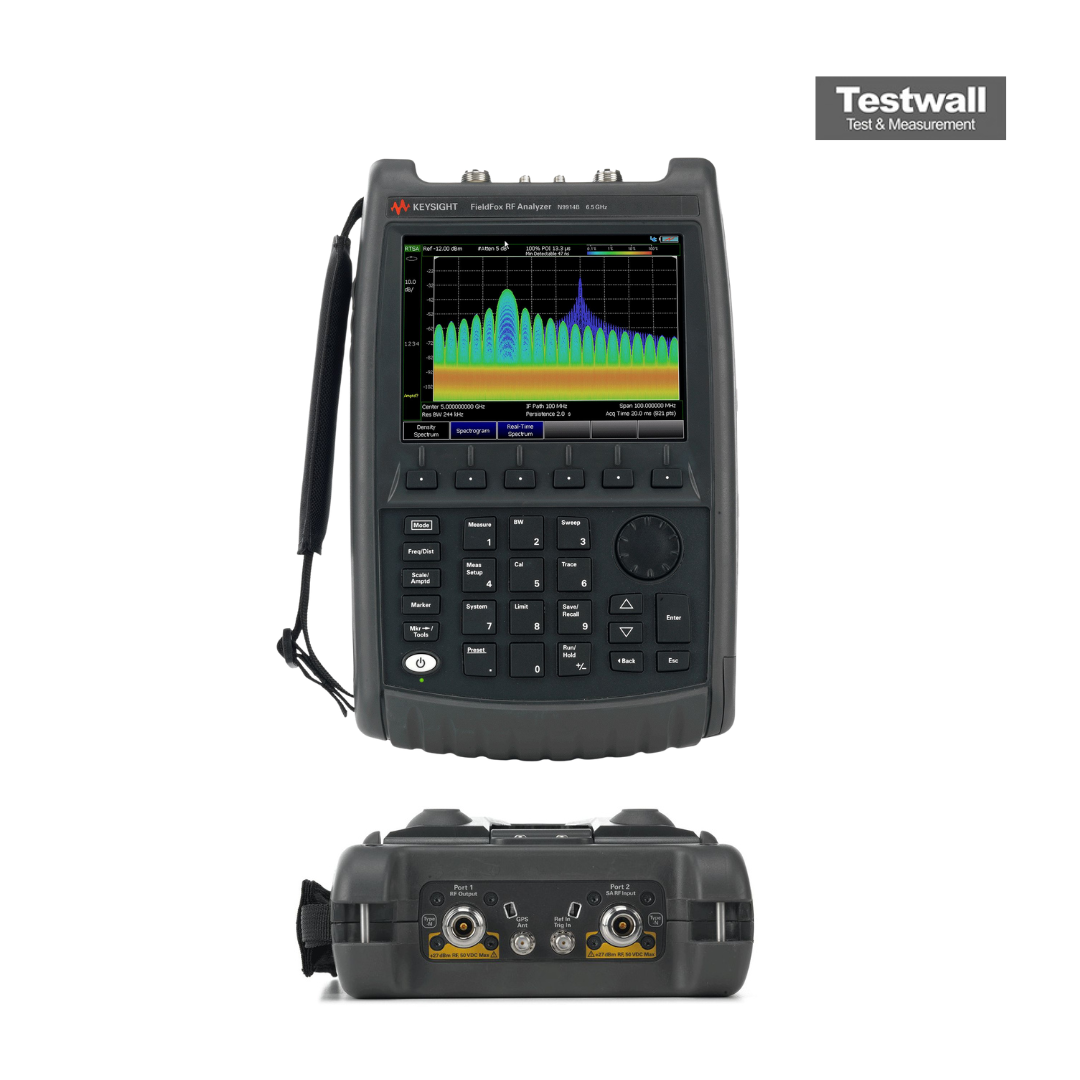

Keysight (Agilent) N9914B FieldFox Handheld RF & Microwave Combination Analyzer
Keysight (Agilent) N9918B FieldFox Handheld RF & Microwave Combination Analyzer with an optional 100 MHz real-time bandwidth and frequency coverage up to 26.5 GHz, is equipped to handle your toughest working environments during routine maintenance, in-depth troubleshooting, and anything in between. To address the millimeter wave frequency requirements for 5G, satellite, and automotive radar industries, FieldFox can easily extend its frequency up to 110 GHz with an add-on downconverter. The Keysight (Agilent) N9918B FieldFox Handheld RF & Microwave Combination Analyzer is always ready to make RF measurements, ensuring every operating mode flexible.
The Keysight (Agilent) N9918B FieldFox Handheld RF & Microwave Combination Analyzer can withstand toughest working conditions with a ruggedized yet lightweight and portable battery-powered design for measuring RF devices like cables, antennas, filters, amplifiers, and signal/spectrum analysis. FieldFox's spectrum analyzer will excel in a dynamic spectral environment. You may face measurement challenges such as the need to detect a low level signal under strong signal conditions (requiring high dynamic range), or close-in small interference signals (requiring excellent phase noise). FieldFox's superior dynamic range (TOI +15 dBm), close in phase noise (-117 dBc/Hz at 10 kHz offset), and fast sweep time make these challenging tasks easier. Keysight (Agilent) N9918B also provides a full power measurement suite and complete trace and state control.
Specifications for the Keysight (Agilent) N9914B FieldFox Handheld RF & Microwave Combination Analyzer Include:
| Frequency Range | 30 kHz to 6.5 GHz |
| Output Power (MAX) | 8 dBm |
| Accuracy | ± 0.5 ppm (typical) + aging |
| Number of Built-In Ports | 2 |
