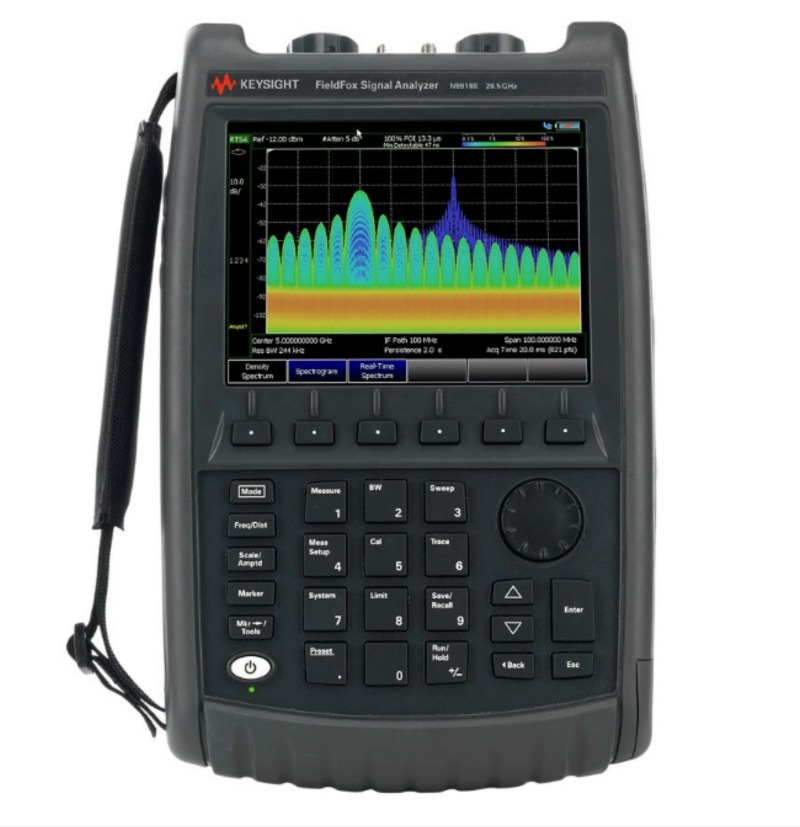

Keysight (Agilent) N9918B
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 26.5 GHz |
| Instrument Type | FieldFox Handheld Microwave Analyzer |
| Measurement Modes | Vector Network Analyzer (VNA), Cable and Antenna Analyzer, Spectrum Analyzer, Power Meter, Interference Analyzer |
| Dynamic Range | >100 dB |
| Output Power Range | -45 dBm to 0 dBm |
| Display | 6.5-inch daylight-readable color LCD touchscreen, 640 x 480 resolution |
| Battery Life | Up to 4 hours of continuous operation with standard battery pack |
| Operating Temperature | -10°C to +55°C |
| Connector Type | Type-N (50 Ω) test ports |
| Weight | Approximately 3.42 kg (7.55 lbs) with battery |
Keysight (Agilent) N9918B Options:
- N9918B - 010 - VNA Time Domain
- N9918B - 030 - Remote Control Capability
- N9918B - 209 - Extended Range Transmission Analysis (ERTA)
- N9918B - 210 - VNA Transmission/Reflection (T/R) S11, S21 magnitude and phase
- N9918B - 211 - VNA S-parameters S11, S21, S22, S12 magnitude and phase (2-port)
- N9918B - 212 - Mixed-Mode S-Parameters
- N9918B - 215 - TDR Cable Measurements
- N9918B - 233 - Spectrum Analyzer (on Combination Analyzers)
- N9918B - 235 - Preamplifier
- N9918B - 236 - Interference Analyzer and Spectrogram
- N9918B - 238 - Spectrum Analyzer Time Gating
- N9918B - 302 - External USB Power Sensor Support
- N9918B - 307 - Built-in GNSS (GPS+) Receiver
- N9918B - 308 - Vector Voltmeter (VVM)
- N9918B - 309 - DC Bias Variable-Voltage Source
- N9918B - 310 - Built-in Power Meter
- N9918B - 312 - Channel Scanner
- N9918B - 320 - Reflection Measurements (RL, VSWR) (applicable to SA only models)
- N9918B - 330 - Pulse Measurements
- N9918B - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9918B - 351 - I/Q Analyzer (IQA)
- N9918B - 352 - Indoor and Outdoor Mapping
- N9918B - 355 - AM/FM Analog Demodulation, Tune and Listen
- N9918B - 356 - Noise Figure (NF)
- N9918B - 358 - EMF Measurements
- N9918B - 361 - EMI Measurements
- N9918B - 370 - Over-the-Air (OTA) LTE FDD
- N9918B - 371 - Over-the-Air (OTA) LTE TDD
- N9918B - 377 - Over-the-Air (OTA) 5G TF
- N9918B - 378 - Over-the-Air (OTA) 5G NR
- N9918B - 208 - USB Power Sensor Measurements versus Frequency
| Model | N9918B |
|---|

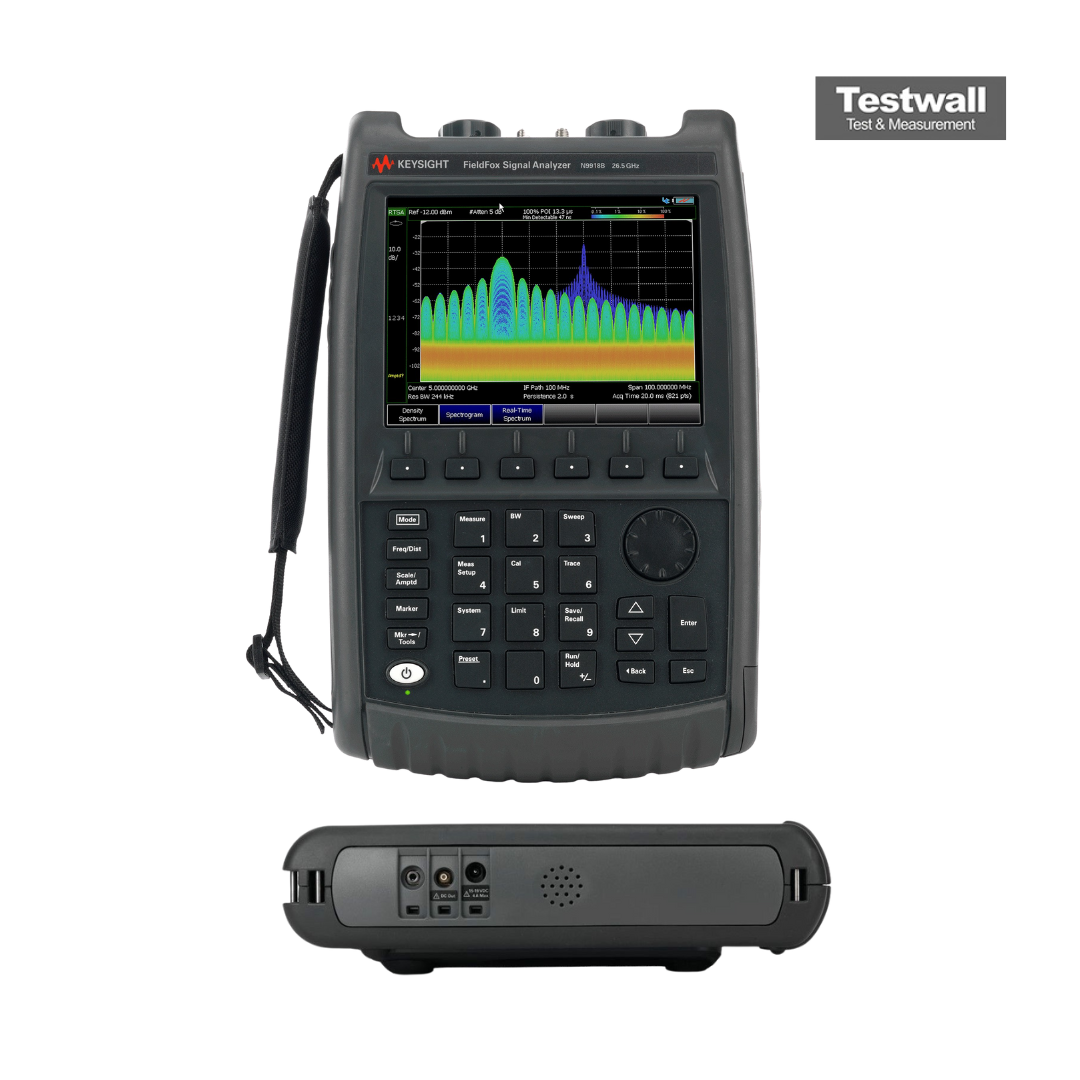

Keysight (Agilent) N9918B Microwave Analyzer
FieldFox brings bench-level accuracy into the field by delivering precise handheld RF and microwave measurements that agree with benchtop analyzers. Keysight N9918B FieldFox Microwave Analyzer with an optional 100 MHz real-time bandwidth and frequency coverage up to 26.5 GHz. To address the millimeter wave frequency requirements for 5G, satellite, and automotive radar industries, FieldFox can easily extend its frequency up to 110 GHz with an add-on downconverter. The FieldFox analyzers are always ready to make RF measurements, ensuring every operating mode flexible.
The Keysight N9918B can withstand toughest working conditions with a ruggedized yet lightweight and portable battery-powered design for measuring RF devices like cables, antennas, filters, amplifiers, and signal/spectrum analysis. FieldFox's spectrum analyzer will excel in a dynamic spectral environment. You may face measurement challenges such as the need to detect a low level signal under strong signal conditions (requiring high dynamic range), or close-in small interference signals (requiring excellent phase noise). FieldFox's superior dynamic range (TOI +15 dBm), close in phase noise (-117 dBc/Hz at 10 kHz offset), and fast sweep time make these challenging tasks easier. FieldFox's spectrum analyzer also provides a full power measurement suite and complete trace and state control.
Specifications for the Keysight (Agilent) N9918B Microwave Analyzer Include:
| Frequency Range | 30 KHz to 26.5 GHz |
| Output Power | 8 dBm |
| Dynamic Range | 114 dB |
| Number of Built-In Ports | 2 |
