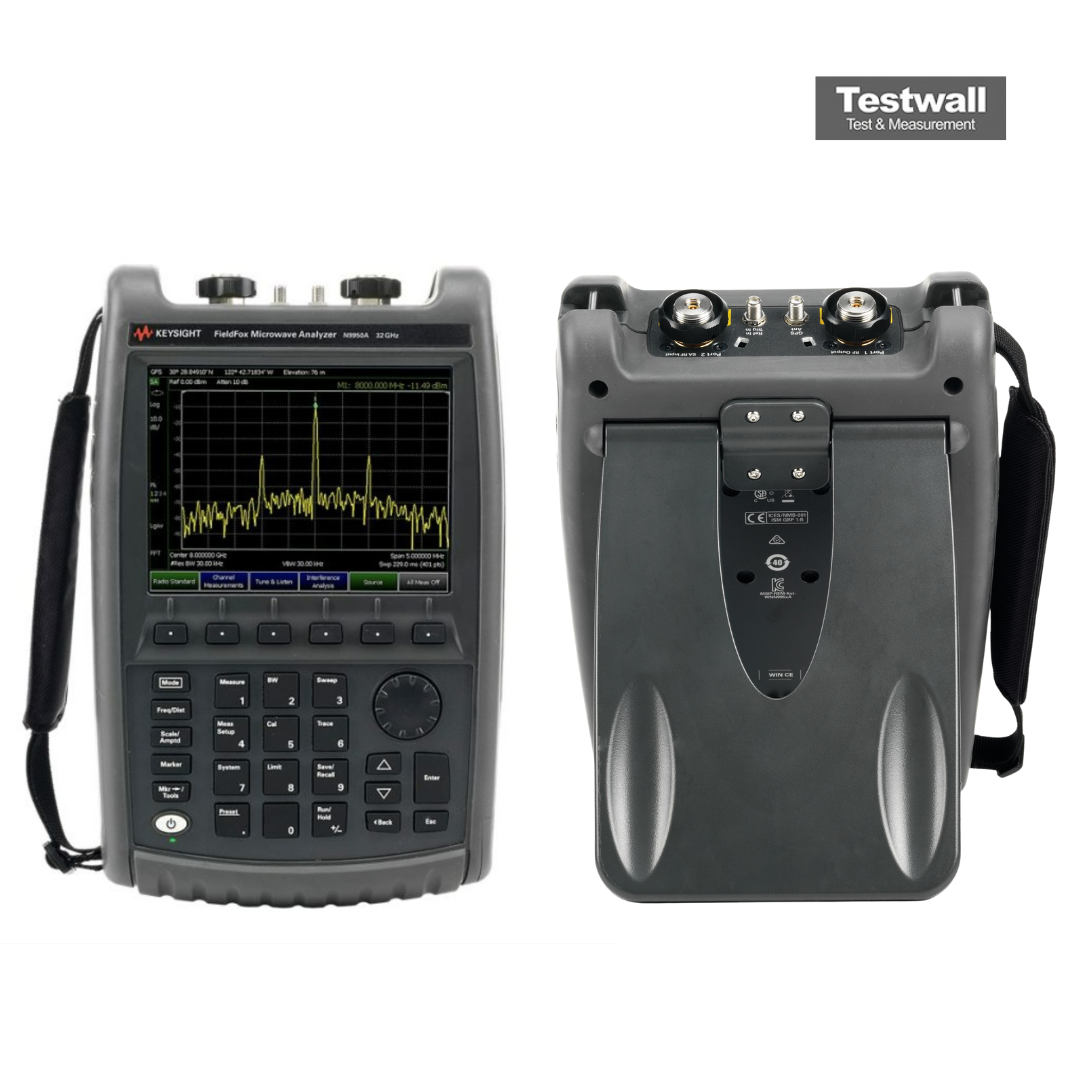

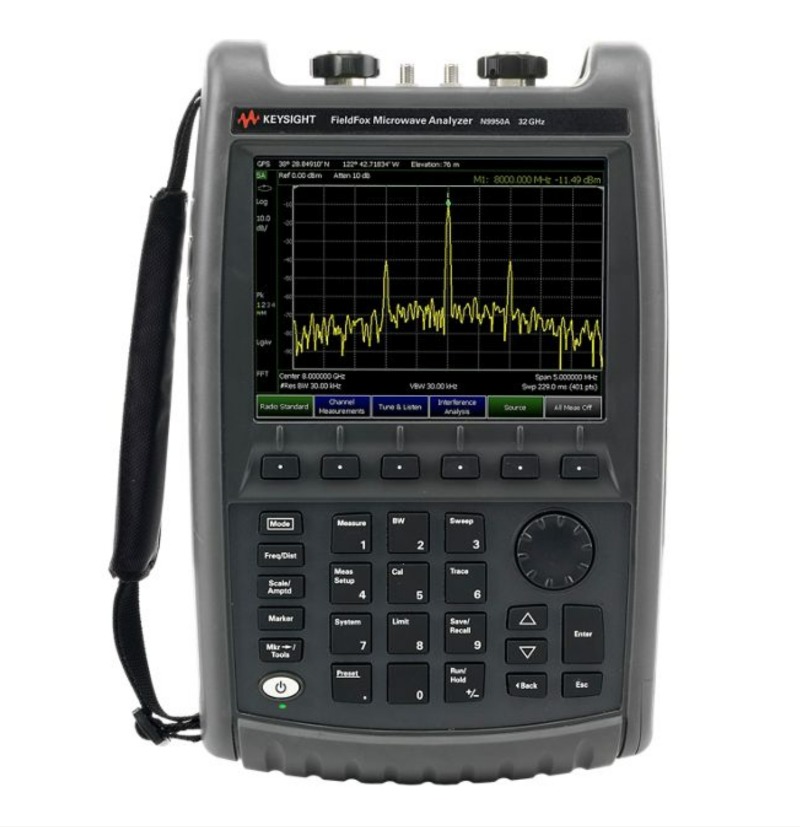

Keysight (Agilent) N9950A
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 32 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 118 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Instrument Type | FieldFox Handheld Vector Network Analyzer (VNA) |
| Display | 6.5-inch daylight-readable color LCD touchscreen |
| Battery Life | Up to 4 hours with standard battery pack |
| Operating Temperature | -10°C to +55°C |
| Connector Type | 3.5 mm (male) RF connectors |
| Weight | Approximately 3.4 kg (7.5 lbs) with battery |
Keysight (Agilent) N9950A Options:
- N9950A - 010 - VNA Time Domain
- N9950A - 030 - Remote Control Capability (iOS device control via FieldFox app)
- N9950A - 209 - Extended Range Transmission Analysis (ERTA)
- N9950A - 210 - VNA Transmission/Reflection (T/R): S11, S21 magnitude and phase
- N9950A - 211 - 2-Port S-parameter measurements (S11, S21, S22, S12)
- N9950A - 212 - Mixed-Mode S-Parameters
- N9950A - 215 - TDR Cable Measurements
- N9950A - 233 - Spectrum Analyzer
- N9950A - 235 - Preamplifier
- N9950A - 236 - Interference Analyzer and Spectrogram
- N9950A - 238 - Spectrum Analyzer Time Gating
- N9950A - 302 - External USB Power Sensor Support
- N9950A - 305 - Distance-to-Fault
- N9950A - 307 - Built-In GPS Receiver
- N9950A - 308 - Vector Voltmeter (VVM)
- N9950A - 309 - DC Bias Variable-Voltage Source
- N9950A - 310 - Built-in Power Meter
- N9950A - 312 - Channel Scanner
- N9950A - 330 - Pulse Measurements
- N9950A - 350 - Real-Time Spectrum Analyzer (RTSA)
- N9950A - 351 - I/Q Analyzer (IQA)
- N9950A - 355 - AM/FM Analog Demodulation, Tune and Listen
- N9950A - 356 - Noise Figure (NF)
- N9950A - 370 - Over-the-Air (OTA) LTE FDD
- N9950A - 377 - Over-the-Air (OTA) 5GTF
| Model | N9950A |
|---|
Keysight (Agilent) N9950A RF & Microwave Combination Analyzer
FieldFox brings bench-level accuracy into the field by delivering precise handheld RF and microwave measurements that agree with benchtop analyzers. The FieldFox combo analyzer N9950A base function is a cable and antenna analyzer and can be configured to include a spectrum analyzer, real-time spectrum analyzer and full 2-port network analyzer. To save space in a field kit, built-in capabilities can be added to provide up to 10 instruments in 1. They're equipped to handle routine maintenance, in-depth troubleshooting and anything in between. Better yet, FieldFox delivers precise microwave and millimeter-wave measurements - wherever you need to go.
To enhance spectrum analysis, the Keysight N9950A FieldFox includes the same PowerSuite measurements used in Keysight signal analyzers, enabling fast, accurate, one- button characterization of channelized communication systems. The InstAlign capability lets you instantly make accurate power measurements in the field, even when temperature fluctuates. With FieldFox, you can measure both the 1-port cable loss and 2-port insertion loss. The N9950A FieldFox comes with a built-in calibration capability that allows you to calibrate the network analyzer without carrying a cal kit into the field. With any other test instrument, when you add additional devices to the test port, such as jumper cables or adapters, you need to recalibrate using a cal kit.
Specifications for the Keysight (Agilent) N9950A RF & Microwave Combination Analyzer Include:
| Maximum Frequency | 32 GHz |
| CAT/VNA Start Frequency | 30 kHz |
| SA Start Frequency | 5 kHz |
| Dynamic Range | 95 dB |
