Keysight (Agilent)

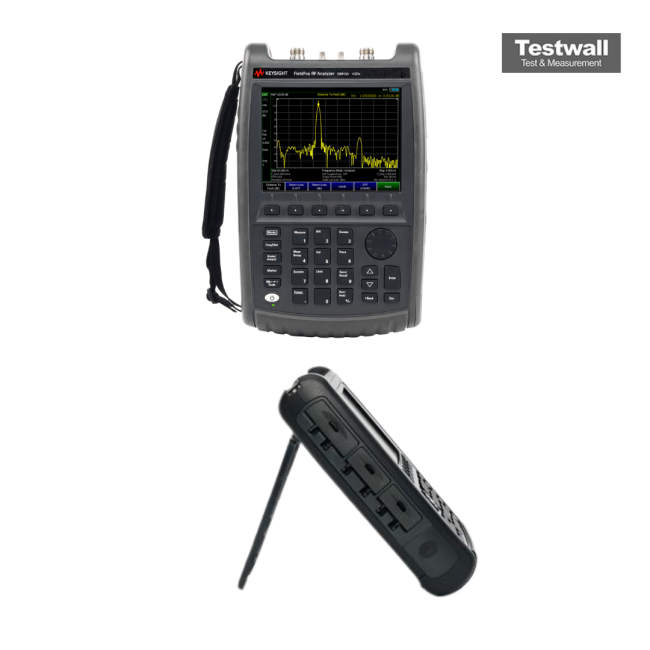

Keysight (Agilent) N9963B
54GHz Fieldfox Handheld Signal Analyzer
100 kHz to 9 GHz Frequency Range
Up to 108 dB Dynamic Range
10.1-inch color touchscreen display Display
Spectrum Analyzer, Network Analyzer, Cable and Antenna Analyzer, Power Meter, Interference Analyzer Measurement Modes
-163 dBm/Hz (typical) DANL (Displayed Average Noise Level)
| Attribute | Value |
|---|---|
| Frequency Range | 100 kHz to 9 GHz |
| Dynamic Range | Up to 108 dB |
| Display | 10.1-inch color touchscreen display |
| Measurement Modes | Spectrum Analyzer, Network Analyzer, Cable and Antenna Analyzer, Power Meter, Interference Analyzer |
| DANL (Displayed Average Noise Level) | -163 dBm/Hz (typical) |
| Phase Noise | -104 dBc/Hz at 10 kHz offset (typical) |
| Input Frequency Reference | 10 MHz internal/external reference |
| Battery Life | Up to 4 hours with standard battery pack |
| Weight | Approximately 4.76 kg (10.5 lbs) |
| Operating Temperature | -10°C to +55°C |
| Model | N9963B |
|---|
Keysight (Agilent) N9963B 54GHz Fieldfox Handheld Signal Analyzer Description: Frequency Range: 9 kHz to 54 GHz Base model includes Signal Analyzer as standard Perform over-the-air measurements for 5G, NR & LTE Use GPS/GNSS for geo location & time-stamping Lightweight, portable & battery powered Keysight (Agilent) N9963B 54GHz Fieldfox Handheld Signal Analyzer
