Keysight (Agilent)
Keysight (Agilent) P9164A
300kHz to 6.5GHz 2x16 USB Solid State Switch Matrix
300 kHz to 9 GHz Frequency Range
4-Port Number of Ports
Up to 123 dB Dynamic Range
-45 dBm to +3 dBm Output Power Range
Up to 17 µs per point Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 9 GHz |
| Number of Ports | 4-Port |
| Dynamic Range | Up to 123 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Measurement Speed | Up to 17 µs per point |
| Trace Noise | 0.004 dB RMS at 10 Hz IF bandwidth |
| Interface | PXIe (PCI Express) |
| Form Factor | PXIe Module (2-slot) |
| Connector Type | 3.5 mm (f) RF connectors |
| Operating Temperature | 0°C to 55°C |
| Model | P9164A |
|---|

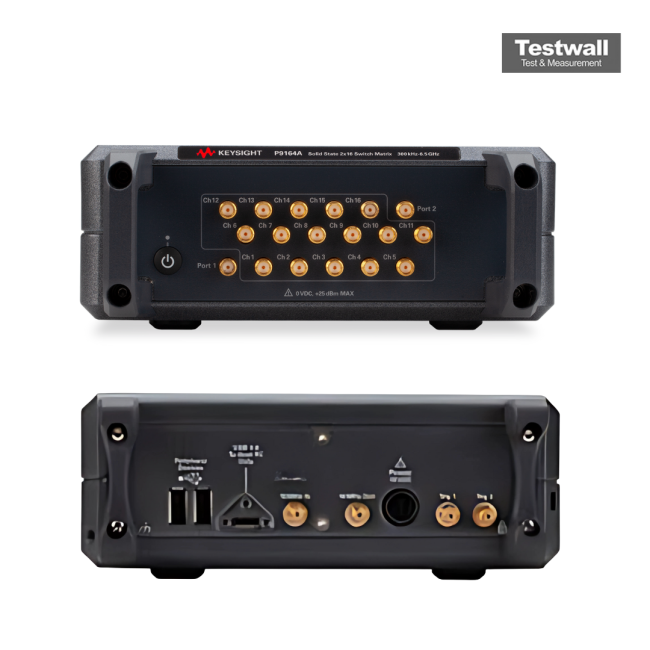

Keysight (Agilent) P9164A 300kHz to 6.5GHz 2x16 USB Solid State Switch Matrix Description: Frequency Range: 300 kHz to 6.5 GHz 2X16 Full cross-bar switch matrix Connectivity: USB Solid-State switching Fast switching speed with an ultra-long cycle life Built-in temperature stability Keysight (Agilent) P9164A 300kHz to 6.5GHz 2x16 USB Solid State Switch Matrix
