Keysight (Agilent)

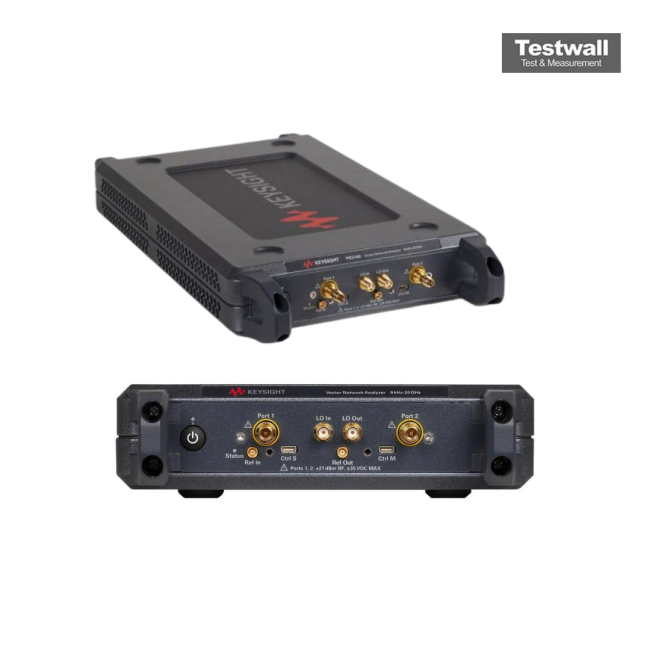

Keysight (Agilent) P9370B
9kHz to 4.5GHz USB Vector Network Analyzer
300 kHz to 9 GHz Frequency Range
2-Port Number of Ports
Up to 122 dB Dynamic Range
-45 dBm to +3 dBm Output Power Range
0.004 dB RMS Trace Noise
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 9 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | Up to 122 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Trace Noise | 0.004 dB RMS |
| Form Factor | USB/PXIe Module (Modular Vector Network Analyzer) |
| Interface | USB 3.0 |
| Connector Type | 3.5 mm (f) ports |
| Measurement Parameters | S-parameters (S11, S21, S12, S22), impedance, admittance, group delay |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) P9370B 9kHz to 4.5GHz USB Vector Network Analyzer Options:
- P9370B - 001 - Vna Activation Software
- P9370B - 200 - 2 Port
- P9370B - 400 - 4 Port
- P9370B - 402 - 4 Port With Internal Second Source
- P9370B - 600 - 6 Port
| Model | P9370B |
|---|
The Keysight (Agilent) P9370B is a 2-port USB Vector Network Analyzer with a frequency range from 9 kHz to 4.5 GHz, delivering a dynamic range of 115 dB and output power of 8 dBm.
Controlled via an external computer using USB, it offers compact, high-performance network analysis ideal for flexible test setups and lab environments.
Testwall can supply the used Keysight (Agilent) P9370B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) P9370B.
