Keysight (Agilent)

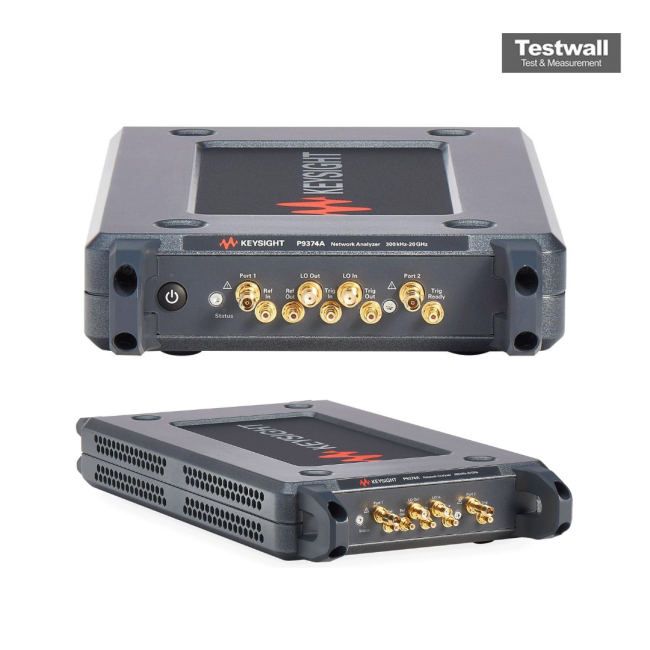

Keysight (Agilent) P9374A
300kHz to 20GHz USB Vector Network Analyzer
300 kHz to 20 GHz Frequency Range
2-Port Number of Ports
123 dB Dynamic Range
-45 dBm to +3 dBm Output Power Range
4 µs/point (fast sweep mode) Measurement Speed
| Attribute | Value |
|---|---|
| Frequency Range | 300 kHz to 20 GHz |
| Number of Ports | 2-Port |
| Dynamic Range | 123 dB |
| Output Power Range | -45 dBm to +3 dBm |
| Measurement Speed | 4 µs/point (fast sweep mode) |
| Form Factor | USB/PXIe Vector Network Analyzer (VNA) |
| Interface | USB 3.0 |
| Connector Type | 3.5 mm (f) test port connectors |
| Operating Temperature | 0°C to 55°C |
| Trace Noise | 0.004 dB RMS |
| Model | P9374A |
|---|
The Keysight (Agilent) P9374A USB Vector Network Analyzer offers a wide frequency range from 300 kHz to 20 GHz with two ports and a dynamic range of 115 dB. With an output power of 7 dBm and USB-controlled connectivity, it provides reliable high-frequency analysis in a compact form factor.
This analyzer is ideal for RF component testing, providing precise S-parameter measurements with flexibility through external computer control via USB.
Testwall can supply the used Keysight (Agilent) P9374A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) P9374A.
