Keysight (Agilent) SL1040A
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 40 GHz |
| Instrument Type | Multiport Test Set |
| Number of Ports | Up to 24 ports |
| Connector Type | 3.5 mm (f) |
| Compatible Analyzer | Keysight PNA/PNA-X Series Network Analyzers |
| Dynamic Range | >100 dB |
| Test Port Power | Up to +10 dBm |
| Interface | GPIB, USB, LAN |
| Operating Temperature | 0°C to 55°C |
| Power Requirements | 100–240 VAC, 50/60 Hz |
Keysight (Agilent) SL1040A Options:
- SL1040A - ST2 - Scienlab Charging Discovery System – Portable Series (Real-time computer in 19" plug-in unit + High-voltage module)
- SL1040A - 301 - Communication module PLC (DIN SPEC 70121 / ISO 15118 Ed. 1 EV & EVSE emulation via Power Line Communication)
- SL1040A - 302 - Communication module GB/T (EV & EVSE emulation according to GB/T 27930-2011 and 2015 DC)
- SL1040A - 303 - Communication module CHAdeMO (EV & EVSE emulation according to CHAdeMO specification, protocols 0.9–2.0)
- SL1040A - IRE - Scienlab Insulation Resistance Emulator (variable resistance emulation for insulation monitoring testing)
- SL1040A - TC1 - Transport case (aluminum case with fitted foam for safe CDS transport)
- SL1040A - S01 - Expert mode license (enables execution of customized test cases and remote test case control; includes SL1040A-S03)
- SL1040A - S02 - Developer mode license (remote interface via Ethernet TCP/UDP for third-party test automation; includes SL1040A-S03 and SL1040A-S04)
- SL1040A - S03 - .NET driver DLL for CDS remote test case interface (TC .NET, provided via Keysight Software Manager)
- SL1040A - S04 - .NET driver DLL for CDS SLEP interface (SLEP .NET, provided via Keysight Software Manager)
| Model | SL1040A |
|---|

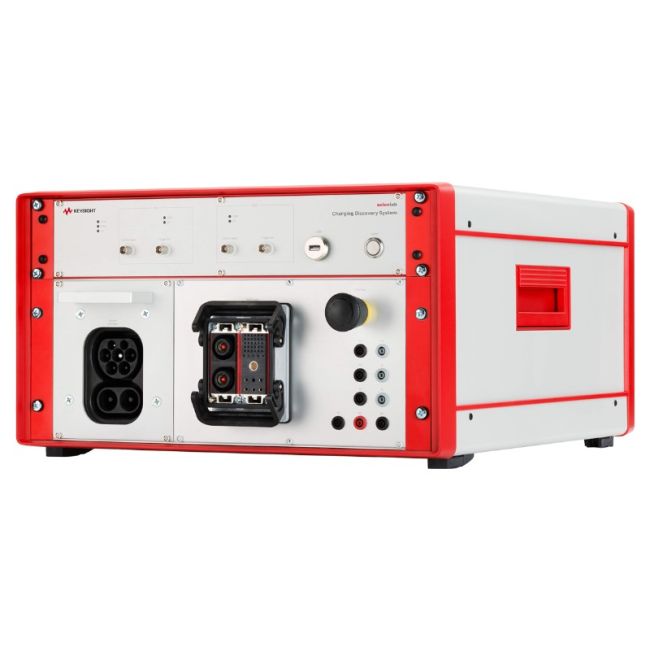

Keysight (Agilent) SL1040A Scienlab Portable Charging Discovery System
The Keysight SL1040A Scienlab Portable Charging Discovery System is a modular solution for conformance and interoperability testing of electric vehicles (EV) and EV supply equipment (EVSE) charging interfaces. For its modular and innovative design, the SL1040A can be configured to customers' specific needs for testing and validating the charging interface of electric vehicles and charging infrastructures. Keysight SL1040A Scienlab Portable Charging Discovery System performs time synchronous measurement as well as decode communication and power signals.
Keysight SL1040A Scienlab Portable Charging Discovery System covers automated functional, conformance, interoperability, and quality test for R&D, end-of-line (EOL) and electromagnetic compatibility (EMC) applications. It ensure scalability and futureproof your hardware design according to CharIN e.V. CCS Test System. Conforms to CE, UL and KC-Mark, certified by CSA Group. It includes extensive test case library for automated conformance testing of CCS, CHAdeMO and GB/T standard. Overall, Keysight SL1040A Scienlab Portable Charging Discovery System provides intuitive control over the system for test analysis and operation.
Specifications for the Keysight (Agilent) DSOX3034T Oscilloscope Include:
| Charging Power | Up to 400 kW |
| Max Voltage | ±1000 V |
| Max Cur | ±400 A |
| Residual cur PE | ±300 mA |
