Keysight (Agilent)

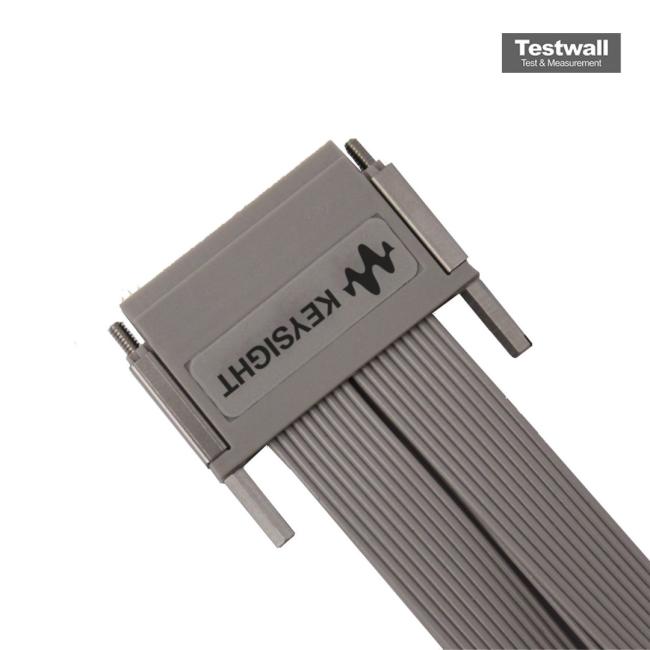

Keysight (Agilent) U4204A
Single-ended 34-channel Data / Clock Probe
34 channels Channel Count
6.4 Gb/s per channel Maximum Sample Rate
up to 4 Mb per channel Memory Depth
±15 mV Threshold Accuracy
-2 V to +6 V Input Voltage Range
| Attribute | Value |
|---|---|
| Channel Count | 34 channels |
| Maximum Sample Rate | 6.4 Gb/s per channel |
| Memory Depth | up to 4 Mb per channel |
| Threshold Accuracy | ±15 mV |
| Input Voltage Range | -2 V to +6 V |
| Minimum Detectable Pulse Width | 150 ps |
| Interface | PCIe Gen 2 (via AXIe chassis) |
| Form Factor | AXIe module (compatible with M9502A and M9505A chassis) |
| Operating Temperature | 0°C to 55°C |
| Software Support | Compatible with Keysight Logic Analyzer application and AXIe-based test systems |
| Model | U4204A |
|---|
The Keysight (Agilent) U4204A is a Single-ended 34-channel Data/Clock Probe, designed for accurate and efficient signal probing in high-speed digital systems. It delivers reliable connectivity and signal integrity. This probe is ideal for analyzing complex digital signals with its 34-channel configuration, supporting synchronized data and clock acquisition in development and test environments. Testwall can supply the used Keysight (Agilent) U4204A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U4204A.
