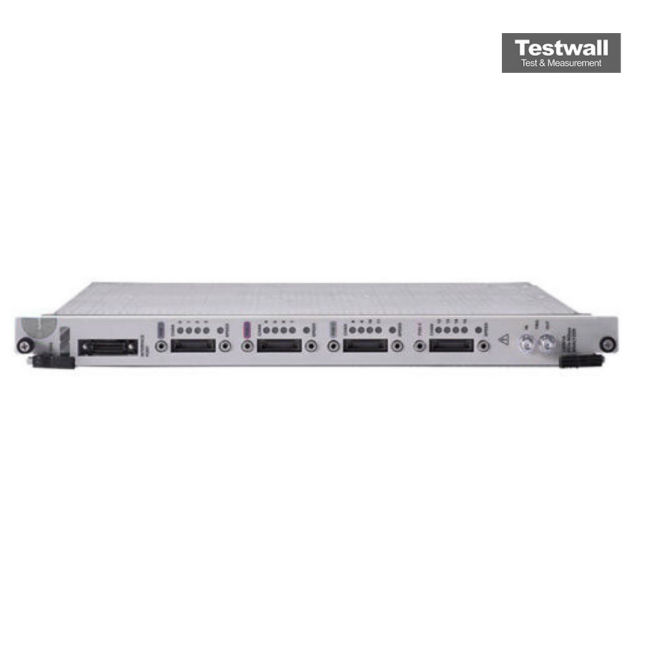

Keysight (Agilent) U4301A
| Attribute | Value |
|---|---|
| Protocol | PCI Express (PCIe) 3.0 |
| Lane Configuration | x1, x2, x4, x8, x16 |
| Maximum Data Rate | 8 GT/s per lane (PCIe 3.0) |
| Memory Depth | Up to 4 GB capture memory |
| Form Factor | AXIe Module (1-slot) |
| Trigger Capabilities | Advanced hardware triggering on packets, sequences, and errors |
| Compliance | PCIe 3.0 Base Specification compliant |
| Software | Keysight U4301A PCIe Exerciser/Analyzer Software included |
| Interface | AXIe chassis required (compatible with M9502A/M9505A) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Model | U4301A |
|---|
The Keysight (Agilent) U4301A PCIe Analyzer is designed for high-speed serial data analysis, offering robust support for PCI Express protocols. It provides deep memory, advanced triggering, and real-time data capture capabilities with high accuracy.
Ideal for validating and debugging PCIe systems, the U4301A supports Gen1/2/3 standards with easy integration and flexible configurations to streamline performance testing.
Testwall can supply the used Keysight (Agilent) U4301A PCIe Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U4301A PCIe Analyzer.
