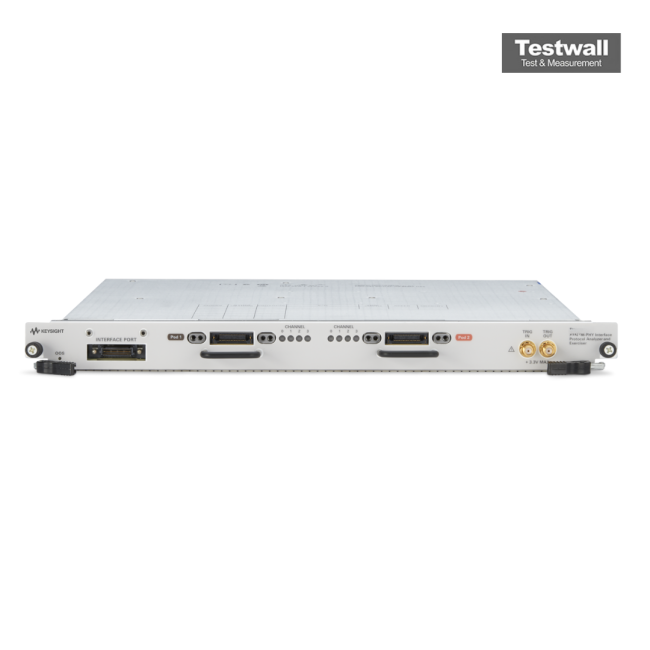

Keysight (Agilent) U4301B
| Attribute | Value |
|---|---|
| Protocol | PCIe (PCI Express) |
| PCIe Generation Support | Gen 1, Gen 2, Gen 3 |
| Maximum Lane Width | x16 |
| Link Speed | Up to 8 GT/s (Gen 3) |
| Form Factor | AXIe Module |
| Capture Memory Depth | Up to 512 MB per lane |
| Trigger Capabilities | Advanced hardware triggering on TLP, DLLP, and physical layer events |
| Software | Keysight PCIe Protocol Analyzer Software (U4301B-SW) |
| Chassis Compatibility | Keysight AXIe Chassis (M9502A, M9505A) |
| Interface | PCIe interposer and probe connection for in-system traffic capture |
| Model | U4301B |
|---|
The Keysight (Agilent) U4301B PCIe Protocol Analyzer provides deep protocol analysis for PCI Express systems, ensuring accurate and efficient validation. It supports PCIe Gen1 to Gen3, offering flexible lane configurations and superior trigger and capture capabilities for detailed inspection.
Designed for engineers and developers, it aids in debugging and verifying complex PCIe system operations with ease and reliability.
Testwall can supply the used Keysight (Agilent) U4301B PCIe Protocol Analyzer, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U4301B PCIe Protocol Analyzer.
