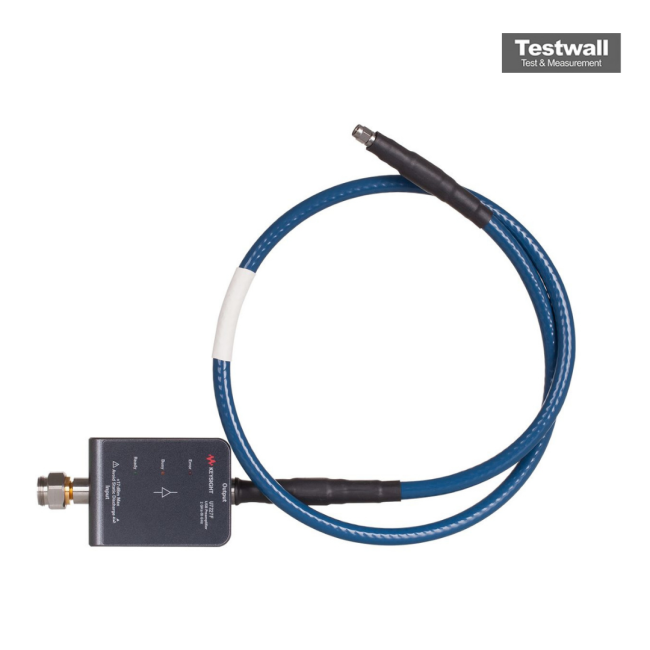

Keysight (Agilent) U7227F
2 GHz To 50 GHz USB Preamplifier
100 MHz to 26.5 GHz Frequency Range
USB 3.0 / USB 3.1 Gen 1 USB Standard
2.92 mm (K-type) male Connector Type
50 Ohm Impedance
USB 3.0 SuperSpeed compliance testing and characterization Application
| Attribute | Value |
|---|---|
| Frequency Range | 100 MHz to 26.5 GHz |
| USB Standard | USB 3.0 / USB 3.1 Gen 1 |
| Connector Type | 2.92 mm (K-type) male |
| Impedance | 50 Ohm |
| Application | USB 3.0 SuperSpeed compliance testing and characterization |
| Insertion Loss | Less than 3 dB up to 26.5 GHz |
| Return Loss | Greater than 15 dB up to 26.5 GHz |
| Compatible Instruments | Keysight Infiniium oscilloscopes and vector network analyzers |
| Form Factor | USB fixture / probe adapter |
| Operating Temperature | 0°C to 55°C |
| Model | U7227F |
|---|
The Keysight (Agilent) U7227F USB Preamplifier operates across a wide frequency range of 2 GHz to 50 GHz with a typical gain of 16.5 dB + 0.23F and a noise figure under 8 dB between 4 GHz and 40 GHz.
It features a USB plug-and-play connection and automatic gain compensation, ensuring simplified integration with consistent signal performance across its range.
Testwall can supply the used Keysight (Agilent) U7227F, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) U7227F.
