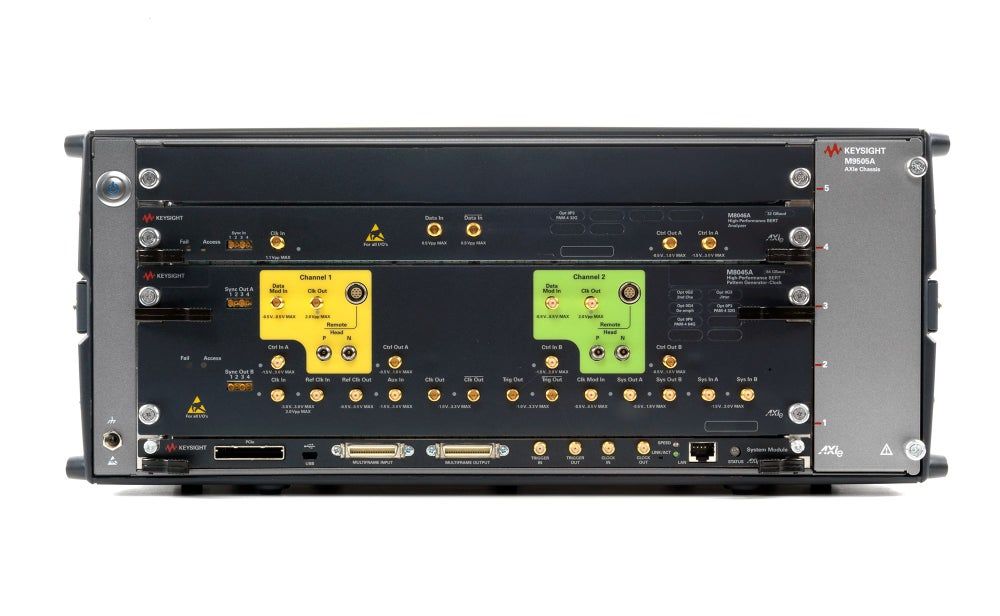

Keysight (Agilent) M8040A
| Attribute | Value |
|---|---|
| Symbol Rate | 2 to 64 GBaud |
| Line Coding | NRZ, PAM3, PAM4 |
| Real-time PAM4 Error Detection | Up to 58 GBaud |
| Max Sample Rate | 64.8 GBd |
| Output Amplitude | 0.9 Vpp at 58 GBd |
| Generator Channels | Up to 2 per M8045A module |
| Clock Recovery | Built-in CDR, adjustable loop bandwidth (16 MHz max) |
| Transmitter Equalisation | Built-in 5-tap FFE with presets |
| Jitter Injection | RJ, PJ, BUJ, clk/2, sRJ, SSC |
| FEC | IEEE 802.3cd FEC encoding and error insertion |
Keysight (Agilent) M8040A Options:
- M8040A-BU1 - M9505A 5-slot AXIe chassis with M9537A embedded PC controller, 16 GB RAM
- M8040A-BU2 - M9505A 5-slot AXIe chassis only
- M8040A-BU3 - M9505A 5-slot AXIe chassis with M9537A controller, 16 GB RAM, Windows 10
- M8045A-G32 - Pattern generator, one channel, up to 32 GBaud NRZ
- M8045A-G64 - Pattern generator, one channel, up to 64 GBaud NRZ
- M8045A-0G2 - Second pattern generator channel
- M8045A-0G3 - Advanced jitter sources
- M8045A-0G4 - De-emphasis
- M8045A-0P6 - PAM4 encoding up to 64 GBaud
- M8057A - Remote head, one channel (one required per generator channel)
- M8046A-A64 - Error analyser, one channel, up to 64 GBaud NRZ
- M8046A-0P6 - PAM4 decoding extension to 58 GBaud
- M8046A-0A5 - Clock recovery extension to 64 GBaud
- M8046A-0A3 - Equalisation (above 32 GBaud)
The M8040A is a J-BERT class bit error ratio tester for physical-layer characterisation and compliance testing of PAM4 and NRZ interfaces up to 64 GBaud. It is built from AXIe modules: the M8045A pattern generator and clock module with M8057A remote heads, and the M8046A error analyser. It offers real-time PAM4 error detection up to 58 GBaud, built-in de-emphasis, equalisation, clock recovery and integrated jitter injection.
Typically supplied in an M9505A 5-slot AXIe chassis, optionally with an M9537A embedded controller, and controlled via M8070B system software. Used for 200/400 GbE, OIF-CEI-56G/112G, PCIe 5.0, USB4, 64G/128G Fibre Channel, SATA/SAS and PON receiver and transmitter testing.
Testwall can supply the used Keysight (Agilent) M8040A, fully tested, with a 12-month warranty and delivery across Europe. Calibration can be arranged on request before shipping. Please contact us if you need calibration or repair of the Keysight (Agilent) M8040A.
