Keysight (Agilent) 11636B
| Attribute | Value |
|---|---|
| Frequency Range | DC to 26.5 GHz |
| Connector Type | APC-3.5 (SMA Compatible) |
| Power Divider Type | Resistive Power Divider |
| Impedance | 50 Ohm |
| Maximum Input Power | 0.5 W (Average) |
| Insertion Loss | 6 dB (Nominal) |
| Isolation | 6 dB (Nominal) |
| VSWR | 1.4:1 (Maximum) |
| Operating Temperature | 0°C to +55°C |
| Number of Ports | 3 (1 Input, 2 Output) |
| Model | 11636B |
|---|

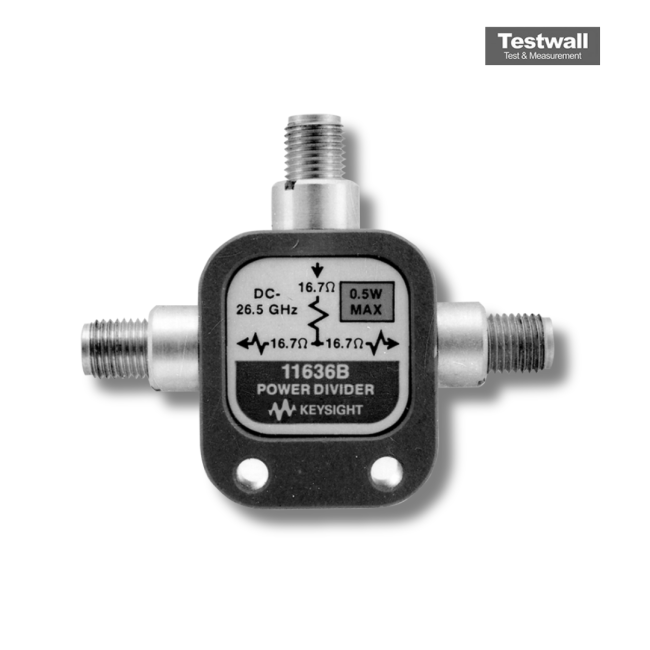

The Keysight (Agilent) 11636B is a DC to 26.5 GHz power divider designed for high-frequency applications, offering exceptional impedance matching on all three ports to minimize re-reflections. It features a maximum SWR of 1.29, an insertion loss of 7.5 dB, amplitude tracking of 0.25 dB at 18 GHz, and typical phase tracking of 2 degrees.
Optimized for use with the Keysight (Agilent) 8757 scalar network analyzer, the 11636B is ideal for wideband comparison measurements and direct power splitting in high-frequency test setups.
Testwall can supply the used Keysight (Agilent) 11636B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11636B.
