Keysight (Agilent) 11857D
| Attribute | Value |
|---|---|
| Connector Type | Type-N |
| Impedance | 50 Ohm |
| Frequency Range | DC to 18 GHz |
| Cable Length | 61 cm (24 inches) |
| Cable Type | RF Test Port Cable |
| Compatible Instruments | Keysight/Agilent Network Analyzers |
| Connector Gender | Male to Male |
| VSWR | Less than 1.3:1 |
| Insertion Loss | Less than 1.5 dB at 18 GHz |
| Phase Stability | High phase stability under flexure conditions |
| Model | 11857D |
|---|

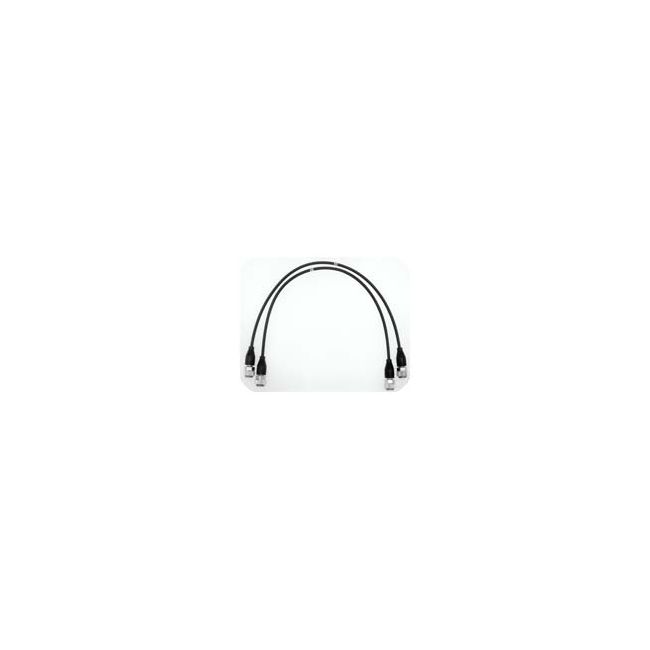

The Keysight (Agilent) 11857D cable set includes two precision 61 cm 50-ohm APC-7 cables, phase-matched to ±2° at 1.3 GHz, offering excellent signal integrity and precision. The cables support frequency ranges from 300 kHz to 6 GHz with return loss >24 dB up to 3 GHz and >20 dB up to 6 GHz. Option B24 provides unmatched cables, removing the phase requirement.
Ideal for S-parameter test sets like the 85046A, the 11857D enables shielded RF extension with high accuracy, ensuring low signal loss and reliable connectivity across wide frequency ranges.
Testwall can supply the used Keysight (Agilent) 11857D, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 11857D.
