Keysight (Agilent)
Keysight (Agilent) 16047A
Test Fixture
Test Fixture for Axial and Radial Leaded Components Fixture Type
Keysight LCR Meters and Impedance Analyzers (4263B, 4268A, 4284A, 4285A, E4980A, and others) Compatible Instruments
DC to 110 MHz Frequency Range
2.5 mm to 25 mm (0.1 in to 1.0 in) Lead Spacing
4-Terminal Pair (4TP) BNC Connector Interface Connection Interface
| Attribute | Value |
|---|---|
| Fixture Type | Test Fixture for Axial and Radial Leaded Components |
| Compatible Instruments | Keysight LCR Meters and Impedance Analyzers (4263B, 4268A, 4284A, 4285A, E4980A, and others) |
| Frequency Range | DC to 110 MHz |
| Lead Spacing | 2.5 mm to 25 mm (0.1 in to 1.0 in) |
| Connection Interface | 4-Terminal Pair (4TP) BNC Connector Interface |
| Component Type Support | Axial and Radial Leaded Components (Capacitors, Resistors, Inductors) |
| Measurement Terminals | 4-Terminal Kelvin Connection |
| Cable Length | 1 m (3.28 ft) |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Dimensions (W x H x D) | Approximately 85 mm x 30 mm x 100 mm (3.35 in x 1.18 in x 3.94 in) |
Keysight (Agilent) 16047A Options:
- 4284A - 4284A-700 - Standard power (2 V, 20 mA, 2 V DC bias)
- 4284A - 4284A-001 - Power amplifier/40V dc bias
- 4284A - 4284A-002 - Bias current interface
- 4284A - 4284A-004 - Memory card
- 4284A - 4284A-006 - 2 m/4 m cable length operation
- 4284A - 4284A-1A7 - ISO 17025 compliant calibration
- 4284A - 4284A-201 - General purpose handler interface
- 4284A - 4284A-202 - Specific handler interface
- 4284A - 4284A-301 - Scanner interface
- 4284A - 4284A-710 - Blank panel
- 4284A - 4284A-915 - Add service manual
- 4284A - 4284A-ABJ - Add Japanese operation manual
- 4284A - 4284A-ABA - Add English operation manual
- 4285A - 4285A-700 - No DC bias
- 4285A - 4285A-001 - 40V dc bias
- 4285A - 4285A-002 - Accessory control interface
- 4285A - 4285A-004 - Memory card
- 4285A - 4285A-1A7 - ISO 17025 compliant calibration
- 4285A - 4285A-201 - General purpose handler interface
- 4285A - 4285A-202 - Specific handler interface
- 4285A - 4285A-301 - Scanner interface
- 4285A - 4285A-710 - Blank panel
- 4285A - 4285A-915 - Add service manual
- 4285A - 4285A-ABJ - Add Japanese operation manual
- 4285A - 4285A-ABA - Add English operation manual
- 4284A/4285A - 4284A/4285A-907 - Front handle kit
- 4284A/4285A - 4284A/4285A-908 - Rack mount kit
- 4284A/4285A - 4284A/4285A-909 - Rack flange and handle kit
- 16047A - 42841A - Bias current source
- 16047A - 42842A - 20 Adc bias current test fixture (for 4284A only)
- 16047A - 42842B - 40 Adc bias current test fixture (for 4284A only)
- 16047A - 42842C - 10 Adc bias current test fixture (for 4285A only)
- 16047A - 42842C-001 - SMD test fixture option for 42842C
- 16047A - 42843A - Bias current cable
- 16047A - 16034E - Test fixture (SMD)
- 16047A - 16034G - Test fixture (0603mm/0201inch-sized SMD)
- 16047A - 16034H - Test fixture (Array-type SMD)
- 16047A - 16044A - Test fixture (SMD, Kelvin contact)
- 16047A - 16047A - Test fixture (Axial and radial)
- 16047A - 16047D - Test fixture (Axial and radial)
- 16047A - 16047E - Test fixture (Axial and radial)
- 16047A - 16048A - Test leads (0.94 meters/BNC)
- 16047A - 16048B - Test leads (0.94 meters/SMC)
- 16047A - 16048D - Test leads (1.89 meters/BNC)
- 16047A - 16048E - Test leads (3.8 meters/BNC)
- 16047A - 16065A - External voltage bias fixture
- 16047A - 16334A - Test fixture (Tweezer contacts)
- 16047A - 16451B - Dielectric test fixture
- 16047A - 16452A - Liquid test fixture
- 16047A - 16270A - Memory card set (Contains 10 memory cards)
- 16047A - 16380A - Standard capacitor set (1, 10, 100, 1000 pF)
- 16047A - 16380C - Standard capacitor set (10, 100, 1000 nF)
- 16047A - 42030A - Four-Terminal Pair standard resistor set (1 mΩ to 100 kΩ)
- 16047A - 42090A - Open termination
- 16047A - 42091A - Short termination
| Model | 16047A |
|---|

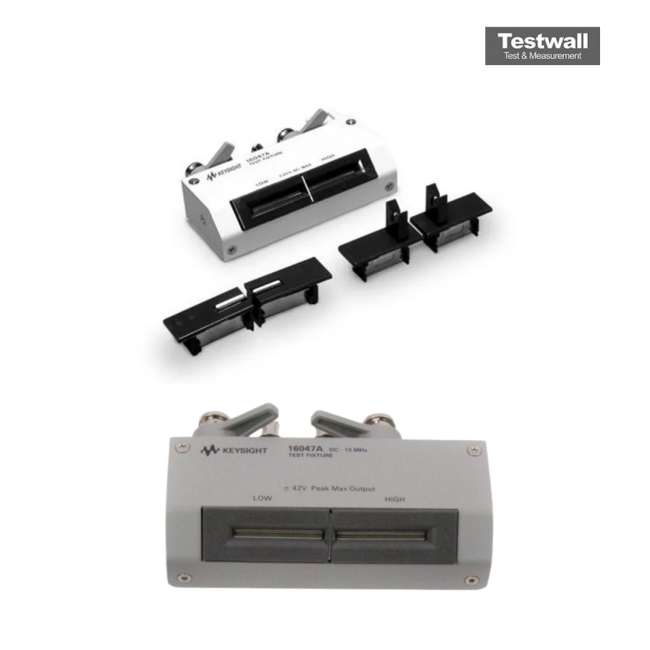

The used Keysight (Agilent) 16047A is a precision test fixture for impedance evaluation of axial and radial lead-type components, supporting frequencies from DC to 13 MHz. Designed with Kelvin contacts, it provides stable low-resistance connections and accommodates a wide impedance measurement range. The contact tip is replaceable, adapting to various device shapes. It operates at up to 40V peak and is compatible with a range of Keysight (Agilent) instruments, including 4263A/B, 4268A, 4279A, 4284A, 4285A, 4288A, 4294A, 4291A, and 4278A.
Ideal for component testing in R&D, QA, and production lines, the 16047A enables accurate measurements with repeatable setups across device types.
Testwall can supply the used Keysight (Agilent) 16047A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16047A.
