Keysight (Agilent) 16048E
| Attribute | Value |
|---|---|
| Cable Length | 1.5 m (4.9 ft) |
| Frequency Range | DC to 110 MHz |
| Connector Type | 4-Terminal Pair (4TP) |
| Compatible Instruments | Keysight E4980A, E4980AL, E4981A, E4982A, E4990A LCR Meters and Impedance Analyzers |
| Test Fixture Interface | BNC Connectors |
| Measurement Function | Connects LCR meters and impedance analyzers to test fixtures or DUT (Device Under Test) |
| Cable Type | 4-Terminal Pair Test Lead Cable |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Warranty | 1 Year |
Keysight (Agilent) 16048E Options:
- 16047A - 16047A-701 - Add Shorting Plate P/N 5000-4226
- 16047D - 16047A-701 - Add Shorting Plate P/N 5000-4226
- 16043A - 16043A-001 - Add Contact Board No.1 P/N 16043-66501
- 16043A - 16043A-002 - Add Contact Board No.2 P/N 16043-66502
- 16043A - 16043A-003 - Add Contact Board No.3 P/N 16043-66503
- 16043A - 16043A-004 - Add Additional Device Guide P/N 16043-00601
- 16043B - 16043B-001 - Add Contact Board No.1 P/N 16043-66511
- 16043B - 16043B-002 - Add Contact Board No.2 P/N 16043-66512
- 16043B - 16043B-003 - Add Contact Board No.3 P/N 16043-66513
- 16043B - 16043B-004 - Add Additional Device Guide P/N 16043-00601
- 42942A - 42942A-700 - Add 7mm open/short/load set
| Model | 16048E |
|---|

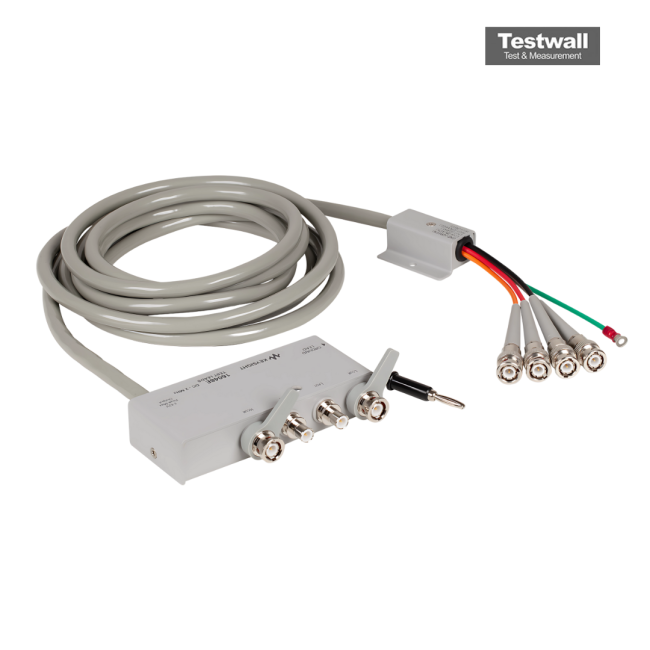

The Keysight (Agilent) 16048E Test Leads extend measurement ports using a precise 4-Terminal Pair configuration. This setup includes a BNC female connector board that enables integration with custom test fixtures. It supports a wide frequency range from DC to 2 MHz and a maximum voltage of ±42 V peak (AC+DC), with a robust operational temperature range from 0 to 55°C.
Designed for use with E4980A/AL LCR meters, the 16048E ensures accurate and reliable low impedance measurements, even under variable lab conditions.
Testwall can supply the used Keysight (Agilent) 16048E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16048E.
