Keysight (Agilent)
Keysight (Agilent) 16196B
Parallel Electrode SMD Test Fixture
SMD Test Fixture Fixture Type
Keysight LCR Meters and Impedance Analyzers (E4980A, E4981A, 4284A, 4285A, 4294A) Compatible Instruments
Up to 3 GHz Frequency Range
Suitable for chip components (0402, 0603, 0805, 1206 and similar SMD packages) Component Size
4-Terminal Pair Configuration Electrode Configuration
| Attribute | Value |
|---|---|
| Fixture Type | SMD Test Fixture |
| Compatible Instruments | Keysight LCR Meters and Impedance Analyzers (E4980A, E4981A, 4284A, 4285A, 4294A) |
| Frequency Range | Up to 3 GHz |
| Component Size | Suitable for chip components (0402, 0603, 0805, 1206 and similar SMD packages) |
| Electrode Configuration | 4-Terminal Pair Configuration |
| Connector Type | BNC Connector Interface |
| Measurement Parameters | Impedance, Capacitance, Inductance, Resistance |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
| Storage Temperature | -40°C to 70°C (-40°F to 158°F) |
| Calibration Support | Supports OPEN, SHORT, and LOAD calibration for accurate measurements |
Keysight Technologies 16196B Options:
- 16196B - 710 - Add the magnifying lens and tweezers
| Model | 16196B |
|---|

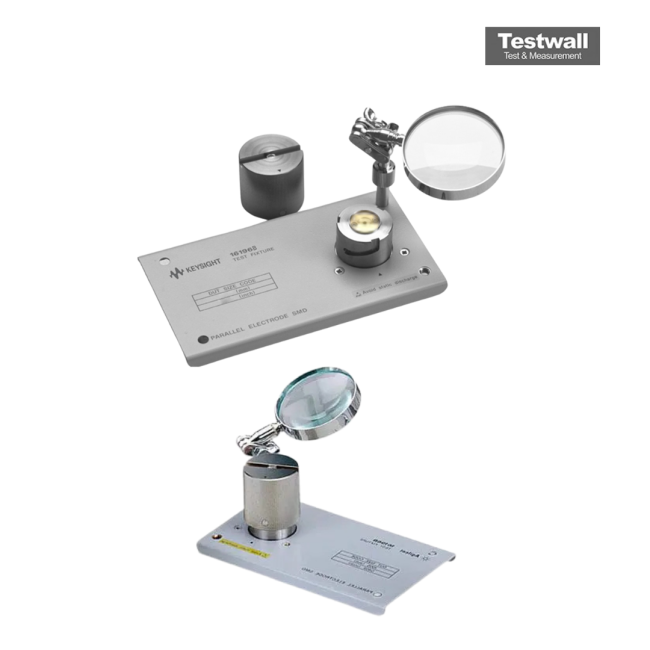

The used Keysight (Agilent) 16196B is a precision SMD test fixture designed to provide excellent repeatability and usability for evaluating surface mount devices up to 3 GHz. Custom-fit for specific SMD sizes, it ensures accurate and repeatable DUT positioning with consistent contact integrity. This design minimizes measurement variability and operator-induced errors, making it particularly effective for high-frequency inductor testing. The 16196 series fixtures are widely used with the Keysight E4991A RF Impedance/Material Analyzer for reliable RF component characterization.
Ideal for R&D and QA environments requiring precision and repeatability in high-frequency SMD testing.
Testwall can supply the used Keysight (Agilent) 16196B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16196B.
