Keysight (Agilent)
Keysight (Agilent) 16453A
Dielectric Material Test Fixture
1 MHz to 1 GHz Frequency Range
Permittivity (εr), Dielectric constant, Dissipation factor (tan δ) Measurement Parameter
Keysight E4980A, E4980AL, E4990A Impedance Analyzers Compatible Instruments
Parallel plate electrode fixture Electrode Type
56 mm (upper electrode), 56 mm (lower electrode) Electrode Diameter
| Attribute | Value |
|---|---|
| Frequency Range | 1 MHz to 1 GHz |
| Measurement Parameter | Permittivity (εr), Dielectric constant, Dissipation factor (tan δ) |
| Compatible Instruments | Keysight E4980A, E4980AL, E4990A Impedance Analyzers |
| Electrode Type | Parallel plate electrode fixture |
| Electrode Diameter | 56 mm (upper electrode), 56 mm (lower electrode) |
| Applicable Material Type | Solid dielectric materials (sheets, films, and plates) |
| Sample Thickness Range | 0.3 mm to 3 mm |
| Connector Type | 4-terminal pair (4TP) connection |
| Operating Temperature | 0°C to 55°C |
| Dimensions (W × H × D) | Approximately 100 mm × 120 mm × 100 mm |
Keysight (Agilent) 16453A Options:
- 16453A - 16190-09001 - Plate
- 16453A - 3030-0007 - Screw SET4-40
- 16453A - 16453-23004 - Screw
- 16453A - 16453-01215 - Latch Plate
- 16453A - 1460-2384 - Spring
- 16453A - 16453-01211 - Plate
- 16453A - 16453-23003 - Dial
- 16453A - 16453-24003 - Screw
- 16453A - 16453-04001 - Cover
- 16453A - 0515-0914 - Screw M3 L6
- 16453A - 16453-23001 - Knob Shaft
- 16453A - 16453-23002 - Sleeve
- 16453A - 3030-0285 - Screw SET6-32
- 16453A - 0515-1551 - Screw M3 L10
- 16453A - 16453-20011 - Deck
- 16453A - 1460-2385 - Spring
- 16453A - 16453-24004 - Latch Button
- 16453A - 16453-29001 - Spring
- 16453A - 16453-25001 - Insulator
- 16453A - 16453-24015 - Electrode
- 16453A - 16453-24011 - Flange
- 16453A - 1250-0816 - Contact
- 16453A - 16453-60001 - Bead Assembly
- 16453A - 16453-24018 - Electrode
- 16453A - 1480-0739 - Spring Pin
- 16453A - 16092-21010 - Pin
- 16453A - 16453-01212 - Plate
- 16453A - 16453-08001 - Spring
- 16453A - 16453-01214 - Plate
- 16453A - 16453-20012 - Base
- 16453A - 0515-0868 - Screw M4 L16
- 16453A - 0470-0013 - Thread Sealant
- 16453A - 16453-01213 - Angle Plate
- 16453A - 16453-60021 - Load
- 16453A - 8710-2081 - Tweezers
- 16453A - 16453-60011 - Carrying Case
- 16453A - 16453-90000 - Specification and Service Manual
| Model | 16453A |
|---|

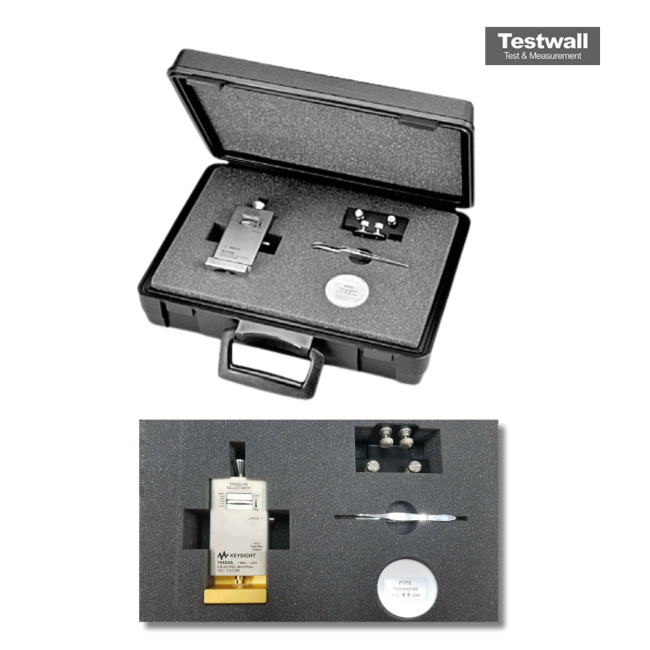

The Keysight (Agilent) 16453A Dialectric Material Test Fixture is engineered for precise dielectric constant and loss tangent measurements when used with the E4991A, 4291A, and 4291B Impedance Analyzers. Utilizing the parallel-plate method, it sandwiches the test material between two electrodes, forming a capacitor whose capacitance is measured by the analyzer. The fixture includes a flexible electrode that self-adjusts to the surface, eliminating the need for manual parallelism adjustments required in the 16451B. This built-in automation enhances accuracy and repeatability, offering convenience for materials research and characterization.
The 16453A supports relative complex permittivity calculation through option 002 firmware and ensures seamless integration with Keysight analyzers for consistent performance across measurement setups.
Testwall can supply the used Keysight (Agilent) 16453A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16453A.
