Keysight (Agilent)

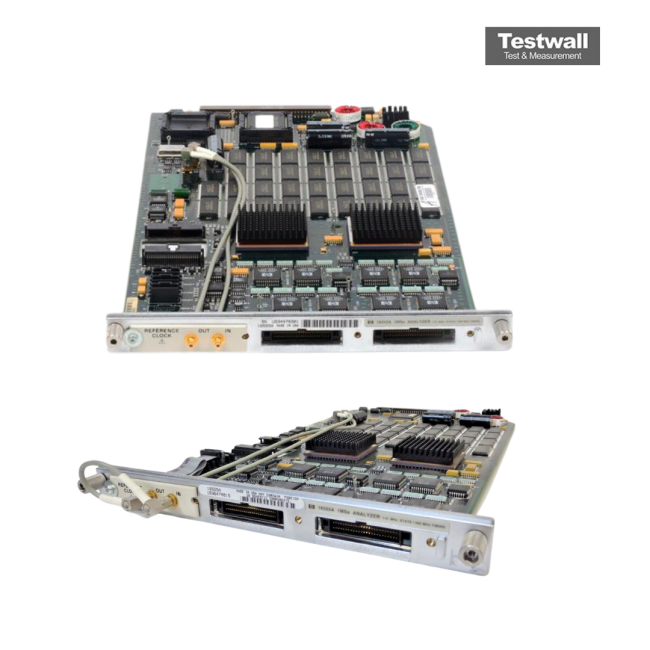

Keysight (Agilent) 16555A
68 Channel Logic Analyser
68 Channels Channel Count
110 MHz Maximum Clock Speed
1 Mbit per Channel Memory Depth
-6.0 V to +6.0 V Threshold Range
4.5 ns Minimum Detectable Pulse Width
| Attribute | Value |
|---|---|
| Channel Count | 68 Channels |
| Maximum Clock Speed | 110 MHz |
| Memory Depth | 1 Mbit per Channel |
| Threshold Range | -6.0 V to +6.0 V |
| Minimum Detectable Pulse Width | 4.5 ns |
| Setup/Hold Time | 3.5 ns / 3.5 ns |
| Compatible Mainframe | HP/Agilent/Keysight 16500 Series Logic Analysis System |
| Number of Pods | 4 Pods (17 Channels per Pod) |
| Operating Temperature | 0°C to 55°C |
| Module Type | Logic Analyzer Module |
| Model | 16555A |
|---|
The Keysight Technologies 16555A provides 68 channels per card and a total of 204 channels per timebase, offering timing-analysis at 250 MHz and state-analysis at 110 MHz.
It features 1M memory depth per channel, enabling 500 MHz timing acquisition and up to 2Mbytes in half-channel mode, with interchangeable probing schemes.
Testwall can supply the used Keysight Technologies 16555A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight Technologies 16555A.
