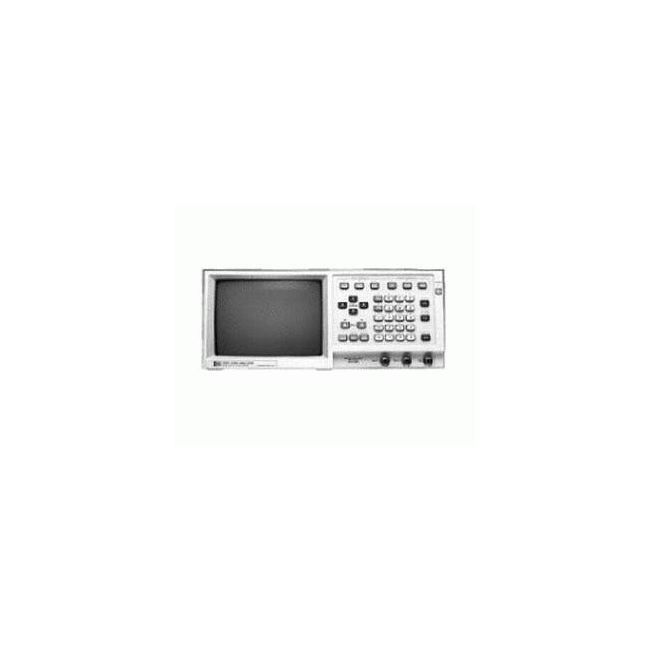

Keysight (Agilent) 16603A
| Attribute | Value |
|---|---|
| Module Type | State/Timing Analysis Module |
| Number of Channels | 68 Channels |
| Maximum State Speed | 235 MHz |
| Maximum Timing Speed | 400 MHz |
| Memory Depth | 64K Samples per Channel |
| Compatible Mainframes | Keysight 16700 Series Logic Analysis Systems |
| Minimum Setup/Hold Time | 3.5 ns / 0 ns |
| Threshold Voltage Range | -6.0 V to +6.0 V |
| Input Impedance | 100 kΩ, 8 pF |
| Operating Temperature | 0°C to 55°C |
| Model | 16603A |
|---|
The Keysight Technologies 16603A is a 68-channel logic analysis mainframe with one slot, a multi-window interface, and Setup Assistant for simplified configuration. It supports up to 100 MHz max state clock and 125 MHz conventional timing (250 MHz in half-channel mode), with a memory depth of 64 KB per channel (128 KB in half-channel mode).
Equipped with Ethernet and IEEE802.3 connectivity, the 16603A offers flexible programmability via X-Windows and advanced trigger sequencing up to 12 levels. It includes flying lead and probe cables as standard.
Testwall can supply the used Keysight Technologies 16603A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight Technologies 16603A.
