Keysight (Agilent)

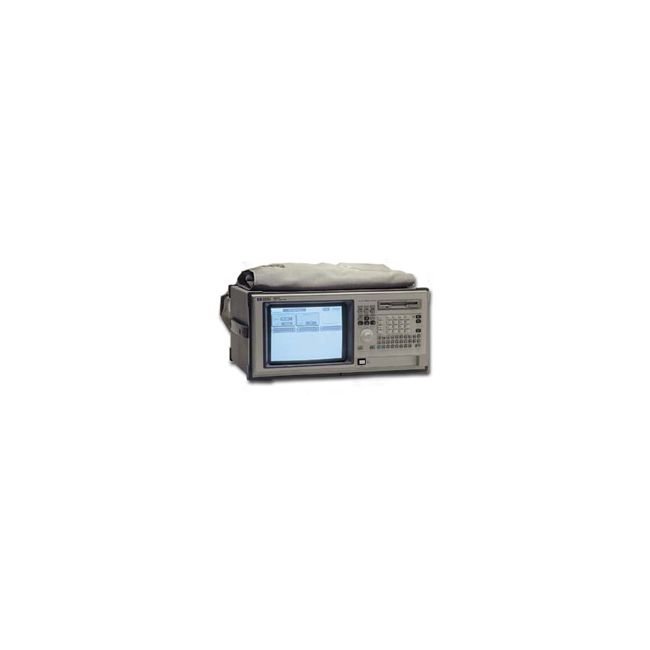

Keysight (Agilent) 1660E
500 MHz timing Logic Analyser
136 Channels Number of Channels
34 Channels at 100 MHz, 102 Channels at 25 MHz Channel Width
100 MHz Maximum State Acquisition Rate
250 MHz (500 MHz with transitional timing) Maximum Timing Acquisition Rate
4K Samples per Channel Memory Depth
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Channel Width | 34 Channels at 100 MHz, 102 Channels at 25 MHz |
| Maximum State Acquisition Rate | 100 MHz |
| Maximum Timing Acquisition Rate | 250 MHz (500 MHz with transitional timing) |
| Memory Depth | 4K Samples per Channel |
| Display | Built-in 8-inch Monochrome CRT Display |
| Oscilloscope Channels | 2 Channels, 100 MHz Bandwidth |
| Interface | HP-IB (GPIB) Interface |
| Input Voltage | 100–240 VAC, 50/60 Hz |
| Form Factor | Benchtop, Portable Logic Analyzer |
Keysight Technologies 1660E Options:
- 1660E - OB1 - Additional User Manual
- 1660E - OB3 - Add Service Manual
- 1660E - OBF - Add Programming Manual
- 1660E - ICM - Rack Mount Kit
- 1660E - IBP - MilStd 45662 Calibration
- 1660E - ABJ - Japanese localization of user manual
- 1660E - UK9 - Front Panel Cover
- 1660E - W30 - 3-year extended repair service
- 1660E - W50 - 5-year extended repair service
| Model | 1660E |
|---|
The Keysight 1660E Logic Analyzer features 100 MHz state speed and 500 MHz timing speed with 4K deep memory, ideal for efficient signal analysis in demanding environments.
Equipped with a 2 GB hard drive, 1.44 MB floppy drive, and VGA color flat-panel display, it offers easy navigation and data handling for electronic debugging.
Testwall can supply the used Keysight 1660E, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 1660E.
