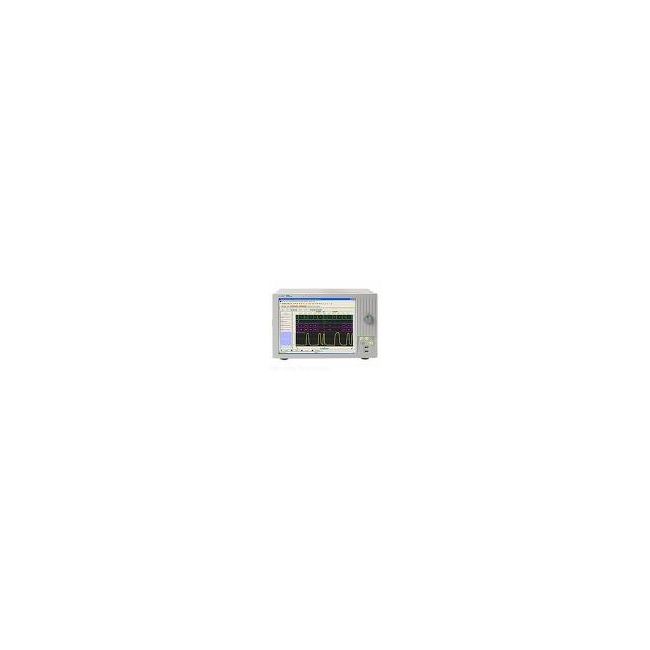

Keysight (Agilent) 16806A
| Attribute | Value |
|---|---|
| Number of Channels | 102 Channels |
| Maximum State Speed | 667 MHz |
| Maximum Timing Speed | 4 GHz (half channel), 2 GHz (full channel) |
| Memory Depth | 64 Mb per channel |
| Minimum Voltage Swing | 500 mV |
| Input Voltage Range | -6 V to +6 V |
| Threshold Voltage Range | -6 V to +6 V |
| Form Factor | Portable Logic Analyzer Module |
| Compatible Systems | Keysight 16900 Series Logic Analysis Systems |
| Probing System Compatibility | E5378A, E5379A, E5380A General Purpose Probes |
| Model | 16806A |
|---|
The Keysight (Agilent) 16806A is a 204-channel portable logic analyzer that integrates logic analysis, pattern generation, and application software in a compact form. It offers a blend of high-performance measurement and usability, featuring deep memory, flexible triggering, and intuitive interface ideal for digital system debug and validation.
Optimized for debugging embedded systems, the 16806A supports precise pattern generation and versatile probing to match real-world development environments efficiently.
Testwall can supply the used Keysight (Agilent) 16806A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16806A.
