Keysight (Agilent)
Keysight (Agilent) 1680AD
Logic Analyser
136 Channels Number of Channels
4 ns Timing Resolution
250 MHz Maximum Clock Speed
64K per Channel Memory Depth
-6.0 V to +6.0 V Threshold Voltage Range
| Attribute | Value |
|---|---|
| Number of Channels | 136 Channels |
| Timing Resolution | 4 ns |
| Maximum Clock Speed | 250 MHz |
| Memory Depth | 64K per Channel |
| Threshold Voltage Range | -6.0 V to +6.0 V |
| Input Voltage Range | -6.0 V to +6.0 V |
| Minimum Detectable Pulse Width | 3.5 ns |
| Interface | GPIB, RS-232 |
| Display | Built-in CRT Display |
| Power Requirements | 100/120/220/240 VAC, 50/60 Hz |
Keysight (Agilent) 1680AD Options:
- 1680AD - E5383A - 17-channel flying lead probe
- 1680AD - E5346A - 34-channel Mictor probe
- 1680AD - E5394A - 34-channel soft touch connectorless probe
- 1680AD - E5385A - 34-channel Samtec probe
- 1680AD - E5339A - 34-channel low voltage Mictor probe
- 1680AD - E5351A - 34-channel unterminated Mictor probe
- 1680AD - E5851A - IEEE 1394 PCI card and cable (for PC-hosted sharing)
| Model | 1680AD |
|---|

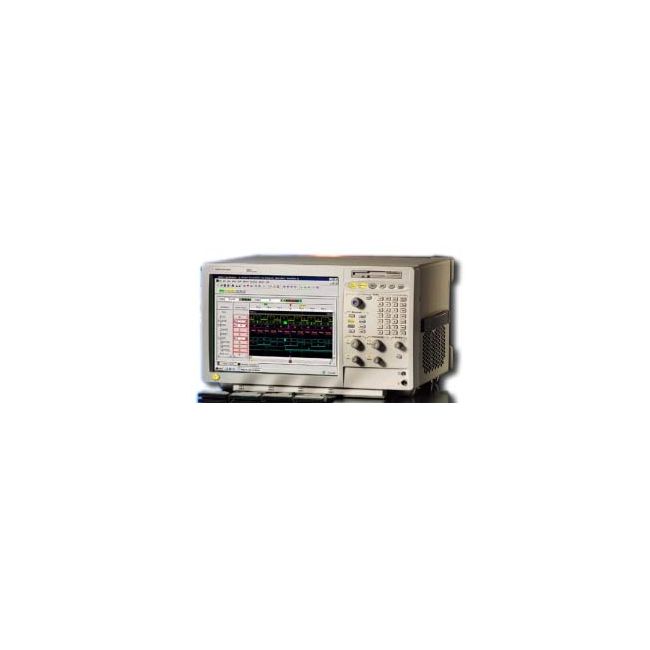

The Keysight (Agilent) 1680AD is a 136-channel color logic analyzer designed to streamline digital design debugging with a user-friendly Windows interface. It features versatile memory depths and supports comprehensive signal analysis across a wide range of applications.
This model is ideal for engineers needing cost-effective tools with high flexibility, fitting diverse work styles and budgets in embedded system design and validation.
Testwall can supply the used Keysight (Agilent) 1680AD, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 1680AD.
