Keysight (Agilent) 16862A
| Attribute | Value |
|---|---|
| Number of Channels | 16 |
| Maximum Sample Rate | 2 GSa/s |
| Maximum Input Frequency | 1 GHz |
| Memory Depth | 2 Mpts per channel |
| Threshold Voltage Range | -6V to +6V |
| Input Voltage Range | -30V to +30V |
| Minimum Detectable Pulse Width | 500 ps |
| Compatible Instrument | Keysight InfiniiVision 3000T X-Series Oscilloscopes |
| Probe Type | Logic Analyzer Probe Module |
| Input Impedance | 100 kΩ, 8 pF |
Keysight (Agilent) 16862A Options:
- 16862A - 700 - 700 MHz state clock speed (increases maximum state clock frequency to 700 MHz and maximum state data rate to 1400 Mb/s)
- 16862A - T10 - 10 GHz quarter channel timing sample rate (requires option 700)
- 16862A - 004 - 4 Mb memory depth
- 16862A - 008 - 8 Mb memory depth
- 16862A - 016 - 16 Mb memory depth
- 16862A - 032 - 32 Mb memory depth
- 16862A - 064 - 64 Mb memory depth
- 16862A - 128 - 128 Mb memory depth
| Model | 16862A |
|---|

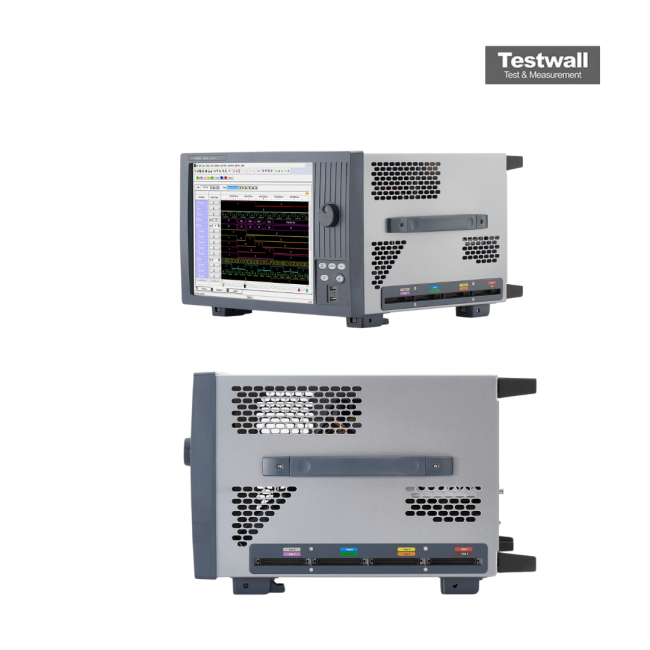

The Keysight (Agilent) 16862A Logic Analyzer features 68 channels, 350 MHz state, and up to 12.5 GHz timing zoom, providing unmatched resolution. With a 15-inch touch-screen, SSD, USB 3.0, and LAN, it ensures seamless operation. Advanced triggering and memory depths up to 512 Mb make it ideal for complex debugging and timing analysis.
Designed for high-speed data acquisition, it supports up to 1.4 Gb/s state data rates and up to 700 MHz state clock rates. Ideal for capturing, analyzing, and debugging signal activities across diverse environments.
Testwall can supply the used Keysight (Agilent) 16862A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16862A
