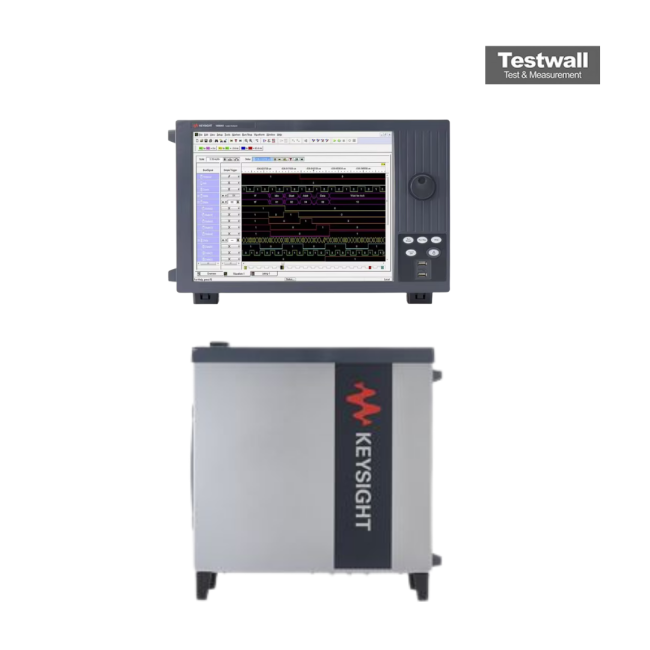

Keysight (Agilent) 16863A
| Attribute | Value |
|---|---|
| Channel Count | 34 Channels |
| Maximum Clock Speed | 500 MHz |
| Timing Resolution | 2 ns |
| Memory Depth | 1 Mbit per Channel |
| Threshold Voltage Range | -6.0 V to +6.0 V |
| Input Voltage Range | -6.0 V to +6.0 V |
| Minimum Detectable Pulse Width | 3.5 ns |
| Interface | Compatible with Keysight 16700 Series Logic Analysis System |
| Pod Configuration | 2 Pods (17 Channels per Pod) |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) 16863A Options:
- 16863A - 700 - 700 MHz state clock speed (upgrades maximum state clock rate to 700 MHz and maximum state data rate to 1400 Mb/s)
- 16863A - 004 - 4 Mb memory depth
- 16863A - 008 - 8 Mb memory depth
- 16863A - 016 - 16 Mb memory depth
- 16863A - 032 - 32 Mb memory depth
- 16863A - 064 - 64 Mb memory depth
- 16863A - 128 - 128 Mb memory depth
| Model | 16863A |
|---|
The Keysight (Agilent) 16863A is a high-performance portable logic analyzer offering 102 channels, 350 MHz state, 2.5 GHz timing, and 12.5 GHz timing zoom, designed for rapid digital debugging. It includes 2 Mb standard depth, up to 256 Mb memory, and 1.4 GHz trigger sequencer for capturing high-speed events. A 15-inch touchscreen, SSD, USB 3.0, and LAN ensure seamless data handling.
Ideal for capturing, analyzing, and debugging digital signals, the 16863A supports timing and state analysis with automated setup and simultaneous eye diagrams on all channels.
Testwall can supply the used Keysight (Agilent) 16863A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 16863A.
