Keysight (Agilent) 17035A
Three Axis InterferoMeter
Keysight/Agilent 4284A Precision LCR Meter Compatible Instrument
Kelvin Clip Lead Set Accessory Type
4 (Four-terminal Kelvin configuration) Number of Leads
BNC Connectors Connector Type
4-Terminal Pair (4TP) Measurement Configuration
| Attribute | Value |
|---|---|
| Compatible Instrument | Keysight/Agilent 4284A Precision LCR Meter |
| Accessory Type | Kelvin Clip Lead Set |
| Number of Leads | 4 (Four-terminal Kelvin configuration) |
| Connector Type | BNC Connectors |
| Measurement Configuration | 4-Terminal Pair (4TP) |
| Cable Length | 1 meter |
| Frequency Range | Up to 1 MHz |
| Application | Component measurement, impedance testing |
| Lead Material | Kelvin clip with shielded cable |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight (Agilent) 17035A Options:
- 5517A - 5517A - Laser Head, 1.5–2.0 MHz reference frequency, 5.5 kg
- 5517B - 5517B - Laser Head, 1.9–2.4 MHz reference frequency, 3.4 kg
- 5517C - 5517C - Laser Head, 2.4–3.0 MHz reference frequency, 3.4 kg
- 5517C - Opt 003 - 3 mm (0.125 in) beam diameter option
- 5517C - Opt 009 - 9 mm (0.375 in) beam diameter option
- 5517D - 5517D - Laser Head, 3.4–4.0 MHz reference frequency, 3.4 kg
- 5501B - 5501B - Laser Head, 1.5–2.0 MHz reference frequency, 3.4 kg
- 10700A - 10700A - 33% Beam Splitter
- 10701A - 10701A - 50% Beam Splitter
- 10707A - 10707A - Beam Bender
- 10702A - 10702A - Linear Interferometer, general purpose
- 10705A - 10705A - Low-mass, limited space interferometer
- 10706A - 10706A - Plane Mirror Interferometer
- 10706B - 10706B - Plane Mirror Interferometer, high stability
- 10715A - 10715A - Differential Interferometer
- 10715A - Opt 001 - Beam turning option for 10715A
- 10716A - 10716A - High Resolution Interferometer
- 10716A - Opt 001 - Beam turning option for 10716A
- 10717A - 10717A - Wavelength Tracker
- 10719A - 10719A - One-axis Differential Interferometer
- 10721A - 10721A - Two-axis Differential Interferometer
- 10735A - 10735A - Three-axis Interferometer
- 10736A - 10736A - Three-axis Interferometer
- 10736A - Opt 001 - Beam bender for fixed compensation axis
- 10737L - 10737L - Compact Three-axis Interferometer (left)
- 10737R - 10737R - Compact Three-axis Interferometer (right)
- 10703A - 10703A - Retroreflector for 10702A/10706A/B
- 10704A - 10704A - Retroreflector for 10705A
- 10724A - 10724A - Plane Mirror Reflector for 10706B/10715A/10716A
- 10725A - 10725A - Plane Mirror optics
- 10726A - 10726A - Plane Mirror optics
- 10710A - 10710A - Adjustable Mount for 10700A, 10701A, 10705A, and 10707A
- 10711A - 10711A - Adjustable Mount for 10702A, 10706A/B, 10715A, and 10716A
- 10722A - 10722A - Plane Mirror Converter
- 10723A - 10723A - High Stability Adapter (converts 10706A to 10706B)
- 10780C - 10780C - Receiver
- 10780F - 10780F - Fiber Optic Remote Receiver
- 10780F - Opt 001 - Remote Receiver option for 10780F
| Model | 17035A |
|---|

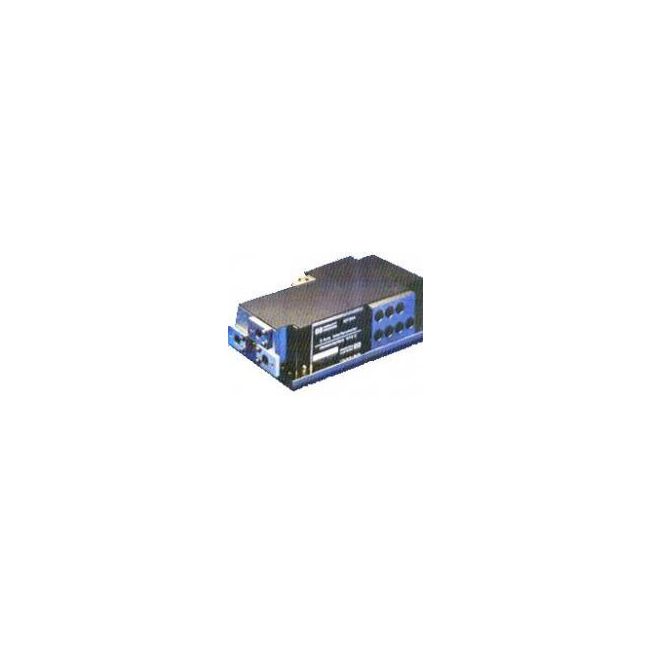

The Keysight 17035A is a three-axis interferometer integrating beam benders, beam splitters, and interferometers into a single compact unit, enabling precise measurement of linear distance and angular displacements including pitch, yaw, and roll.
Designed for demanding multi-axis motion control environments, it supports accurate displacement analysis in systems requiring high precision and compact integration.
Testwall can supply the used Keysight 17035A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 17035A.
