Keysight (Agilent)
Keysight (Agilent) 33120A
DC-15MHz Function/Arbitrary Waveform Generator
1 channel Channels
40 MSa/s Sample Rate
50 mVpp to 10 Vpp into 50 Ω Amplitude
AM, FM, FSK, burst Modulation
12 bit Vertical Resolution
| Attribute | Value |
|---|---|
| Channels | 1 channel |
| Sample Rate | 40 MSa/s |
| Amplitude | 50 mVpp to 10 Vpp into 50 Ω |
| Modulation | AM, FM, FSK, burst |
| Vertical Resolution | 12 bit |
| Frequency Range | 100 µHz to 15 MHz (sine, square); up to 100 kHz (ramp, triangle) |
| Waveforms | sine, square, ramp, triangle, noise, arbitrary, DC |
| Arbitrary Memory | 8 to 16,000 points |
| Rise/Fall Time | < 20 ns |
| Harmonic Distortion | -70 dBc DC to 20 kHz; -35 dBc 1 to 15 MHz; THD < 0.04% |
| Sweep Modes | linear, log, 1 ms to 500 s |
| Timebase Aging | < 10 ppm per year |
| Output Impedance | 50 Ω |
| Interfaces | GPIB, RS-232 |
| Dimensions | 254.4 × 103.6 × 374 mm |
| Weight | 4 kg |
Keysight Technologies 33120A Options:
- 33120A - Opt. 001 - Phase Lock/TCXO Timebase Option
- 33120A - Opt. 106 - BenchLink Arb Software (34811A)
- 33120A - Opt. 1CM - Rack Mount Kit (34190A)
- 33120A - Opt. 910 - Extra Manual Set

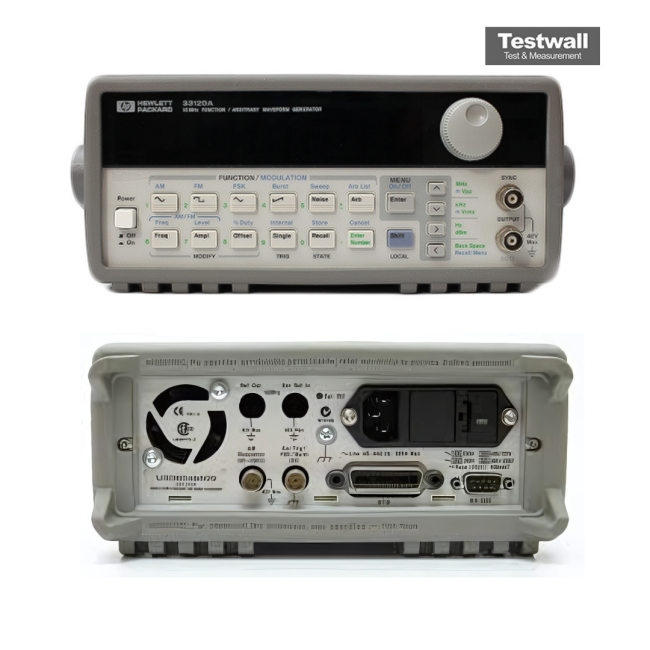

The Keysight (Agilent) 33120A Function / Arbitrary Waveform Generator employs direct digital synthesis (DDS) to produce highly stable, low-distortion waveforms with precise control. It supports sine and square waves up to 15 MHz, and offers a range of built-in functions including ramp, triangle, noise, sin(x)/x, and cardiac signals. Arbitrary waveforms are generated with 12-bit resolution at 40 MSa/s, with a 16k point depth. Frequency resolution reaches 10 µHz, and output ranges from 50 mV to 10 V p-p into 50 Ω with fine 3-digit control.
Advanced features include linear/log sweep, modulation modes (AM, FM, FSK, Burst), and full remote programmability via GPIB (SCPI) and RS-232 interfaces.
Testwall can supply the used Keysight (Agilent) 33120A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 33120A.
Options and configurations
- Timebase Aging: < 10 ppm per year (TCXO with Opt. 001)
