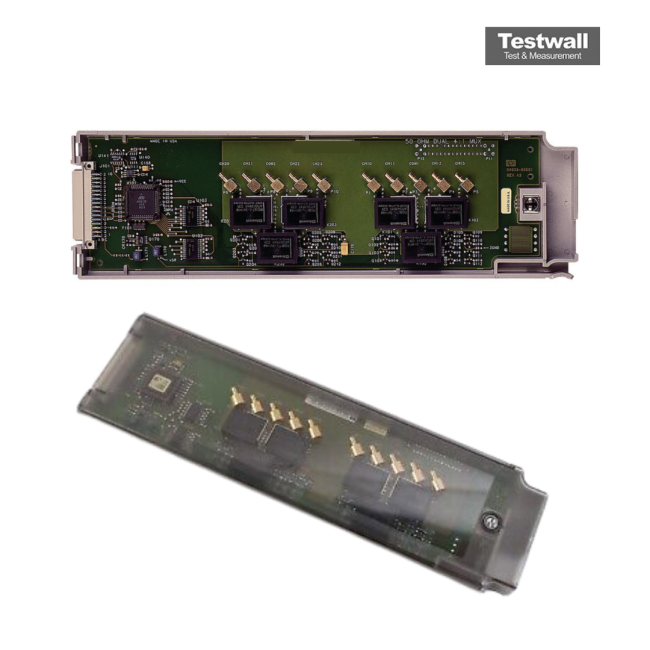

Keysight (Agilent) 34906A
RF Multiplexer Module
Dual 4-Channel RF Multiplexer Module Type
8 Channels (2 Banks of 4 Channels) Number of Channels
DC to 2.4 GHz Frequency Range
50 Ohms Characteristic Impedance
Keysight 34980A Multifunction Switch/Measure Unit Compatible Mainframe
| Attribute | Value |
|---|---|
| Module Type | Dual 4-Channel RF Multiplexer |
| Number of Channels | 8 Channels (2 Banks of 4 Channels) |
| Frequency Range | DC to 2.4 GHz |
| Characteristic Impedance | 50 Ohms |
| Compatible Mainframe | Keysight 34980A Multifunction Switch/Measure Unit |
| Connector Type | SMA (Female) |
| Maximum Input Voltage | 50 V DC |
| Maximum RF Power | 10 W (40 dBm) |
| Insertion Loss | 0.8 dB at 1 GHz (Typical) |
| VSWR | 1.4:1 at 1 GHz (Typical) |
| Model | 34906A |
|---|
The Keysight (Agilent) 34906A RF Multiplexer Module supports dual 4-channel 75-ohm switching with a 2 GHz bandwidth. It enables broadband switching for high-frequency and pulsed signals through independent 1x4 multiplexers, ideal for routing signals between DUT and test instruments.
Each channel connects via SMB inputs or BNC-to-SMB adapters, supporting modular cascade setups to create up to 16:1 topologies in a single frame.
Testwall can supply the used Keysight (Agilent) 34906A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 34906A.
