Keysight (Agilent) 34908A
| Attribute | Value |
|---|---|
| Module Type | 40-Channel Single-Ended Multiplexer |
| Number of Channels | 40 single-ended channels |
| Compatible Mainframe | Keysight 34970A / 34972A Data Acquisition / Switch Unit |
| Voltage Measurement Range | Up to 300 V (DC or AC RMS) |
| Maximum Current Rating | 1 A per channel |
| Frequency Range | DC to 10 MHz |
| Contact Resistance | Less than 1 Ohm |
| Relay Type | Reed relays |
| Operating Temperature Range | 0°C to 55°C |
| Connector Type | Screw terminal block (3-wire per channel) |
| Model | 34908A |
|---|

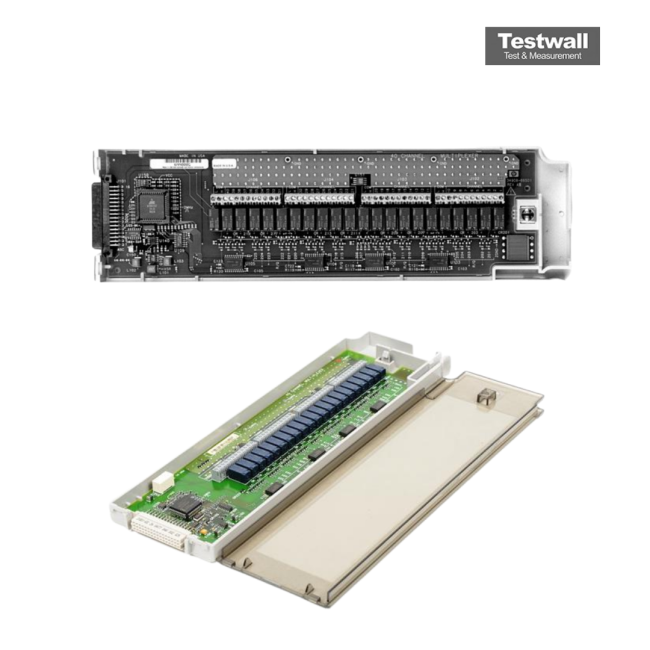

The Keysight 34908A is a 40-channel single-ended multiplexer module designed for the 34970A/34972A Data Acquisition/Switch Unit. It enables high-density switching for common-low applications like battery testing and component characterization. Supporting all two-wire internal measurements except current, it features single-wire switching, 60 ch/s scanning, and an isolated low connection that floats up to 300 V.
This module includes a built-in thermocouple reference junction and is ideal for benchtop testing and automated test systems requiring compact switching capability.
Testwall can supply the used Keysight 34908A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 34908A.
