Keysight (Agilent) 34947A
| Attribute | Value |
|---|---|
| Number of Channels | 3 independent 1-wire SPDT (Form C) relay channels |
| Relay Type | Unterminated, general-purpose SPDT (Form C) relays |
| Maximum Switching Voltage | 300 V DC or 250 V AC (rms) |
| Maximum Switching Current | 2 A |
| Maximum Switching Power | 60 W DC, 125 VA AC |
| Compatible Mainframe | Keysight 34980A Multifunction Switch/Measure Mainframe |
| Module Slot Compatibility | Single-slot module for the 34980A mainframe |
| Relay Drive | 5 V DC relay coil drive via internal mainframe supply |
| Isolation | Channel-to-channel and channel-to-chassis isolation provided |
| Connector Type | Screw-terminal connection block for field wiring |
| Model | 34947A |
|---|

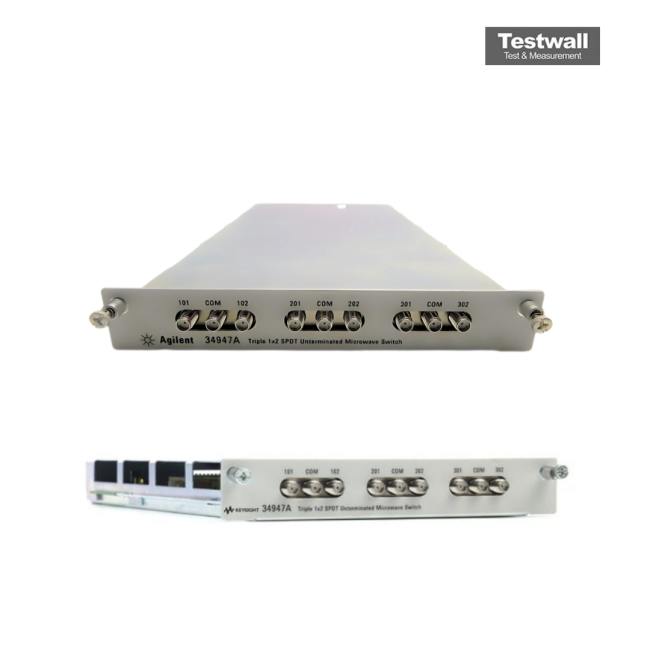

The Keysight 34947A Microwave Switch Module offers three independent SPDT unterminated switches supporting frequencies from DC to 26.5 GHz. It ensures low insertion loss, high isolation, and excellent VSWR, ideal for general-purpose microwave switching. This module supports up to 50 W switching with SMA connectors and allows external switch mounting.
Perfect for multi-band receiver/transmitter testing, it enables flexible signal routing from various sources. It features high-frequency performance and versatility in complex test setups.
Testwall can supply the used Keysight 34947A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight 34947A
