Keysight (Agilent) 37719A
| Attribute | Value |
|---|---|
| Instrument Type | SDH/SONET Test Set |
| Interface Rates | STM-1/4/16 (SDH) and OC-3/12/48 (SONET) |
| Maximum Bit Rate | Up to 2.5 Gbps (OC-48/STM-16) |
| Optical Interfaces | Single-mode and multimode fiber optical interfaces supported |
| Tributary Testing | PDH tributaries including 1.5 Mbps, 2 Mbps, 34 Mbps, 45 Mbps, and 140 Mbps |
| Error Analysis | BER testing, error insertion, and performance monitoring per ITU-T G.826 and G.821 standards |
| Alarm Generation & Detection | Full SDH/SONET alarm generation and detection including AIS, LOS, LOF, and pointer adjustments |
| Overhead Access | Full section, line, and path overhead access and monitoring |
| Jitter Measurement | Jitter generation and measurement capability compliant with ITU-T O.172 and Telcordia GR-253 |
| Power Requirements | 100–240 VAC, 50/60 Hz, auto-ranging power supply |
Keysight Technologies 37719A Options:
- 37719A - 013 - DS1/PDH/T-carrier testing (DS1, DS3, E1, E2, E3)
- 37719A - 014 - E1 mapped into DS3
- 37719A - 104 - 1310 nm optical interface
- 37719A - 105 - 1550 nm optical interface
- 37719A - 106 - 1310/1550 nm optical interface
- 37719A - 200 - Jitter and Wander testing
- 37719A - 300 - ATM testing up to 2.5 Gb/s
- 37719A - 301 - ATM testing up to 622 Mb/s
- 37719A - 302 - ATM testing up to 155 Mb/s
- 37719A - 601 - RS-232-C, HP-IB, Parallel printer, and LAN remote control/printer interface
- 37719A - 602 - In-lid 80-column full-width graphics printer
- 37719A - 610 - SC optical connector (replaces standard FC/PC)
- 37719A - 611 - ST optical connector (replaces standard FC/PC)
- 37719A - 620 - WECO 560 connector (replaces BNC)
- 37719A - UK6 - Commercial calibration certificate with test data
- 37719A - 0A9 - DNA software (E4540A) license for up to 10 copies
- 37719A - UAT - DNA software (E4540A) license for unlimited copies
| Model | 37719A |
|---|

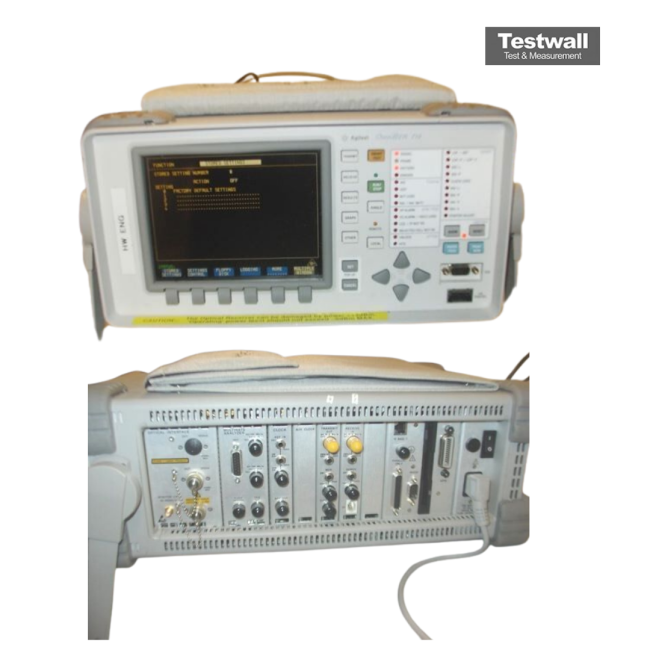

The Keysight (Agilent) 37719A OmniBER 719 is a high-performance communications analyzer supporting SONET, POS, and ATM testing up to 2.5 Gb/s (OC-48). It offers extensive multi-rate testing, jitter analysis, optical power measurement, and overhead functions. Features include support for concatenated payloads, protection switching, and full pointer sequence generation compliant with Telcordia and ITU-T standards.
Ideal for SONET network installation, maintenance, and verification, the OmniBER 719 ensures accuracy with full thru-mode operation and comprehensive overhead access. Upgradeable design supports future needs.
Testwall can supply the used Keysight (Agilent) 37719A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 37719A.
