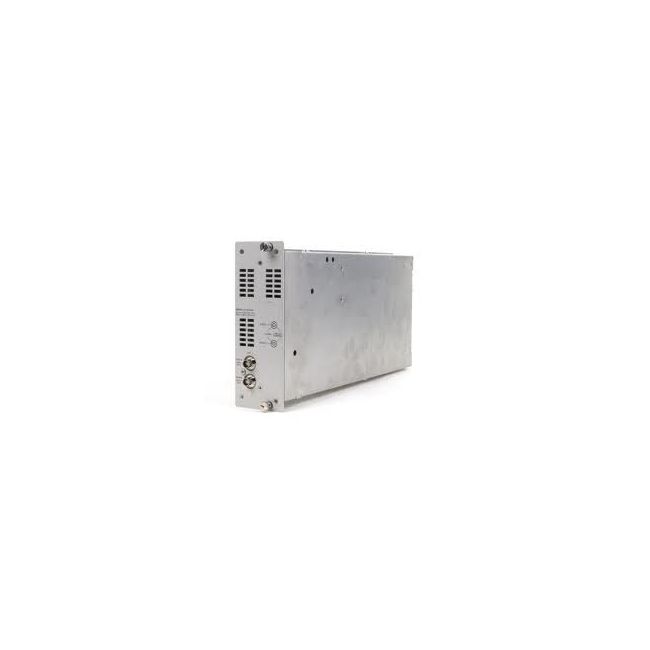

Keysight (Agilent) 41420A
| Attribute | Value |
|---|---|
| Instrument Type | DC Source/Monitor Unit |
| Voltage Output Range | 0 to ±200 V |
| Current Output Range | 0 to ±100 mA |
| Voltage Measurement Resolution | 10 µV |
| Current Measurement Resolution | 10 fA |
| Output Channels | 1 Channel |
| Interface/Connectivity | Compatible with Agilent/Keysight 4142B Modular DC Source/Monitor |
| Module Form Factor | Plug-in module for 4142B mainframe |
| Measurement Functions | Voltage and Current Sourcing and Measurement |
| Compliance Setting | Voltage and Current Compliance Programmable |
Keysight (Agilent) 41420A Options:
- HP 4142B - Opt. 050 - 50Hz Line Frequency
- HP 4142B - Opt. 060 - 60Hz Line Frequency
- HP 4142B - Opt. 100 - 100/120V Line Voltage
- HP 4142B - Opt. 220 - 220/240V Line Voltage
- HP 4142B - Opt. 300 - Control unit (required with HP 16087A and HP 16088B opt 300)
- HP 4142B - Opt. 400 - HP 41420A HPSMU: 200V, 1A (2 slots)
- HP 4142B - Opt. 410 - HP 41421B MPSMU: 100V, 100mA (1 slot)
- HP 4142B - Opt. 420 - HP 41422A HCU: 10V, 10A (2 slots)
- HP 4142B - Opt. 430 - HP 41423A HVU: 1000V, 10mA (2 slots)
- HP 4142B - Opt. 440 - HP 41424A VS/VMU: 40V, 100mA (1 slot)
- HP 4142B - Opt. 450 - HP 41425A AFU (1 slot)
- HP 16058A - Opt. 001 - Adds HP 4142B system cable
- HP 16058A - - Test Fixture (Non-Kelvin SMU, VS/VMU); includes set of 4 triax cables (1.5m)
- HP 16087A - - Module Selector (supports SMU, HCU, HVU); includes connector plate and on/off status indicator
- HP 16088B - - Test Fixture (Kelvin, supports all HP 4142B plug-in units)
- HP 16088B - Opt. 010 - Socket module set for power devices
- HP 16088B - Opt. 020 - Socket module set for small signal devices
- HP 16088B - Opt. 030 - Universal socket module for custom devices
- HP 16088B - Opt. 300 - Adds module selector (mounted inside fixture)
- HP 16276B - - IMA/WS: BASIC operating system on HP 9000 Series 300 workstations
- HP 16277B - - IMA/UX: BASIC/UX operating system on HP 9000 Series 300 workstations
- HP 16278B - - IMA/PC: BASIC/MS-DOS operating system on HP Vectra or IBM compatible PCs
| Model | 41420A |
|---|
The Keysight (Agilent) 41420A module delivers up to 14 Watts output power with a 1 A current range from 0 V to 200 V. It ensures precision with 0.0000002% voltage programming accuracy and includes critical safety features like overvoltage and overcurrent protection. Overpower protection further enhances reliability and measurement integrity.
Designed to minimize test time and eliminate instabilities, the 41420A is ideal for high-accuracy test environments demanding consistent performance.
Testwall can supply the used Keysight (Agilent) 41420A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 41420A.
