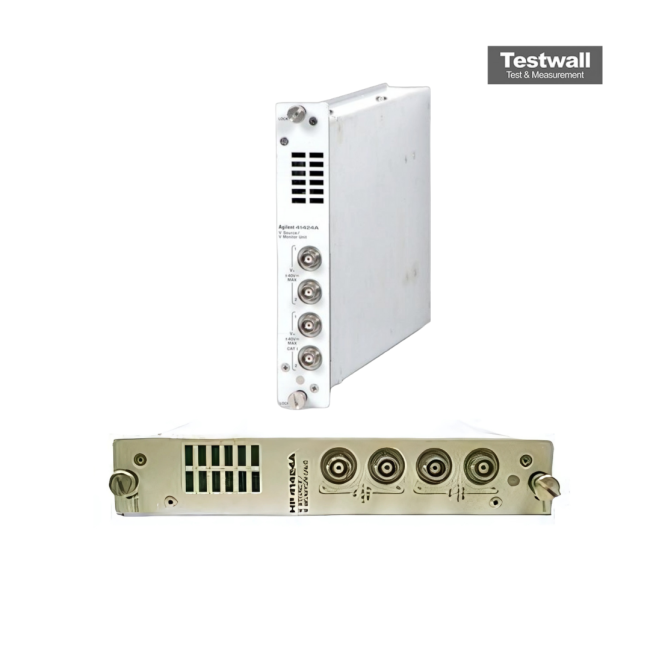

Keysight (Agilent) 41424A
| Attribute | Value |
|---|---|
| Function | Source Monitor Unit (SMU) for Semiconductor Parameter Analyzer |
| Compatible Instrument | Keysight 4145B Semiconductor Parameter Analyzer |
| Voltage Output Range | ±20 V |
| Current Output Range | ±100 mA |
| Voltage Measurement Resolution | 200 µV |
| Current Measurement Resolution | 1 nA |
| Number of SMU Channels | 1 Channel per unit |
| Output Impedance | High impedance source output |
| Interface/Connection | Direct plug-in module for 4145B mainframe |
| Operating Temperature | 0°C to 55°C |
Keysight (Agilent) 41424A Options:
- HP 4142B - Opt. 050 - 50Hz Line Frequency
- HP 4142B - Opt. 060 - 60Hz Line Frequency
- HP 4142B - Opt. 100 - 100/120V Line Voltage
- HP 4142B - Opt. 220 - 220/240V Line Voltage
- HP 4142B - Opt. 300 - Control unit
- HP 4142B - Opt. 400 - HP 41420A HPSMU:200V,1A (2 slots)
- HP 4142B - Opt. 410 - HP 41421B MPSMU:100V,100mA (1 slot)
- HP 4142B - Opt. 420 - HP 41422A HCU:10V,10A (2 slots)
- HP 4142B - Opt. 430 - HP 41423A HVU:1000V,10mA (2 slots)
- HP 4142B - Opt. 440 - HP 41424A VS/VMU:40V,100mA (1 slot)
- HP 4142B - Opt. 450 - HP 41425A AFU (1 slot)
- HP 16058A - Opt. 001 - Adds HP 4142B system cable
- HP 16088B - Opt. 010 - Socket module set for power devices
- HP 16088B - Opt. 020 - Socket module set for small signal devices
- HP 16088B - Opt. 030 - Universal socket module for custom devices
- HP 16088B - Opt. 300 - Adds module selector (mounted inside fixture)
- HP 16058A - ACC - Test Fixture (Non-Kelvin SMU, VS/VMU), includes set of 4 triax cables (1.5m)
- HP 16087A - ACC - Module Selector (supports SMU, HCU, HVU), includes connector plate and on/off status indicator
- HP 16088B - ACC - Test Fixture (Kelvin, supports all HP 4142B plug-in units)
| Model | 41424A |
|---|
The Keysight (Agilent) 41424A Voltage Source/Voltage Monitor Unit is a precision module designed for the 4142B Mainframe, offering voltage sourcing from 40µV to 100V and current monitoring from 20fA to 100mA. With a 2W power limit, it supports two channels for constant or pulsed voltage sourcing and current monitoring, and up to two channels for grounded or differential voltage monitoring.
Ideal for semiconductor testing and advanced research, the 41424A delivers accurate voltage and current control with robust channel versatility in a single-slot form factor.
Testwall can supply the used Keysight (Agilent) 41424A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 41424A.
