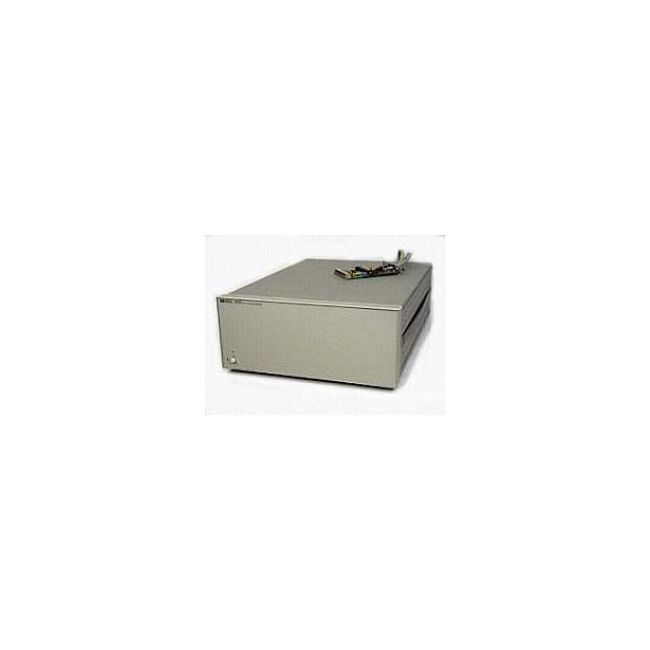

Keysight (Agilent) 41501B
| Attribute | Value |
|---|---|
| Function | SMU/Pulse Generator Expander |
| Compatible Instruments | Keysight 4155C, 4156C Semiconductor Parameter Analyzers |
| Number of SMU Slots | 4 SMU expansion slots |
| Maximum Output Voltage | ±200 V |
| Maximum Output Current | ±1 A |
| Pulse Generator Units (PGU) | 2 built-in Pulse Generator Unit channels |
| Pulse Voltage Range | ±40 V |
| Minimum Pulse Width | 10 ns |
| Interface/Connectivity | Connects via dedicated cable to 4155C/4156C mainframe |
| Power Supply | 100/120/220/240 VAC, 50/60 Hz |
Keysight (Agilent) 41501B Options:
- 41501B - Option 412 - HPSMU + 2PGU
- 41501B - 16440A - SMU/Pulse Generator Selector
- 41501B - 16441A - R-BOX (adds selectable series resistor to SMU output)
- 41501B - 16442A - Test Fixture
| Model | 41501B |
|---|
The Keysight (Agilent) 41501B SMU and Pulse Generator Expander enhances the capabilities of the 4155C and 4156C by integrating seamlessly and adding extra measurement resources like 2 PGUs and a high-power SMU or 2 medium-power SMUs, supporting up to 1 A current and ±200 V voltage output.
Ideal for Flash memory Write/Erase endurance testing using the 16440A selector, the 41501B ensures flexible expansion with 1.6A ground unit included in all configurations.
Testwall can supply the used Keysight (Agilent) 41501B, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 41501B
