Keysight (Agilent)
Keysight (Agilent) 4262A
120Hz, 1KHz & 10KHz Digital LCR Meter
C, L, R, G, D, Q, |Z|, θ Measurement Parameters
120 Hz, 1 kHz, 10 kHz Test Frequencies
0.00001 pF to 19.9999 mF (Capacitance); 0.01 µH to 19.9999 kH (Inductance) Measurement Range
0.1% Basic Accuracy
1 Vrms Test Signal Level
| Attribute | Value |
|---|---|
| Measurement Parameters | C, L, R, G, D, Q, |Z|, θ |
| Test Frequencies | 120 Hz, 1 kHz, 10 kHz |
| Measurement Range | 0.00001 pF to 19.9999 mF (Capacitance); 0.01 µH to 19.9999 kH (Inductance) |
| Basic Accuracy | 0.1% |
| Test Signal Level | 1 Vrms |
| Display | 5-digit LED display with dual parameter readout |
| Interface | HP-IB (IEEE-488) / GPIB |
| Measurement Speed | Fast, Medium, and Slow measurement modes |
| Power Requirements | 100/120/220/240 VAC, 48–66 Hz |
| Operating Temperature | 0°C to 55°C (32°F to 131°F) |
Keysight (Agilent) 4262A Options:
- 4262A - HP-IB - HP-IB (digital interface) option
- 4262A - Digital Comparison - Digital Comparison option
- 4262A - BCD Output - BCD Output option
| Model | 4262A |
|---|

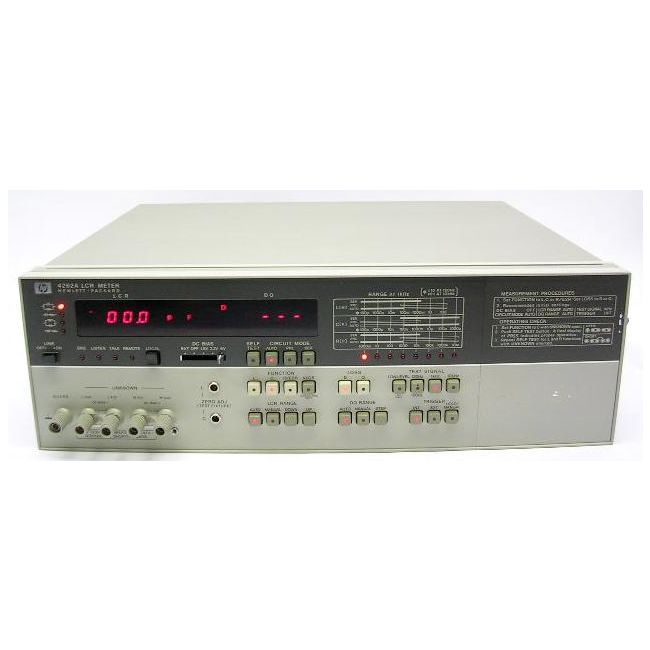

The Keysight (Agilent) 4262A Digital LCR Meter is a precision instrument engineered for high-speed, high-accuracy impedance measurements across a wide component range. It supports parallel and series equivalent circuit analysis with selectable test frequencies of 120 Hz, 1 kHz, and 10 kHz. Capabilities include capacitance measurement from 0.01 pF to 19.99 mF, inductance from 0.01 µH to 1999 H, and resistance from 1 mΩ to 19.99 MΩ, with basic accuracy ranging from 0.2% to 0.3%.
Equipped with dual 3½-digit LED displays and built-in self-test functionality, the 4262A ensures efficient component characterization in both development and test environments.
Testwall can supply the used Keysight (Agilent) 4262A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 4262A.
