Keysight (Agilent) 53230A
| Attribute | Value |
|---|---|
| Frequency Range | DC to 350 MHz (standard), up to 15 GHz with optional microwave channels |
| Resolution | 12 digits/second frequency resolution |
| Time Interval Resolution | 20 ps single-shot time interval resolution |
| Input Channels | 2 standard channels (350 MHz), optional 3rd channel for 6 GHz or 15 GHz |
| Timebase Accuracy | Aging rate: ±1 ppm/year (standard TCXO); optional high-stability OCXO available |
| Measurement Speed | Up to 250,000 measurements per second |
| Input Impedance | 50 Ω or 1 MΩ selectable |
| Interface/Connectivity | USB, LAN (LXI Core 2011), and GPIB (optional); supports SCPI commands |
| Display | 4.3-inch color LCD display with graphical statistics and histogram |
| Power Requirements | 100–240 VAC, 50/60 Hz, 80 W maximum |
| Model | 53230A |
|---|

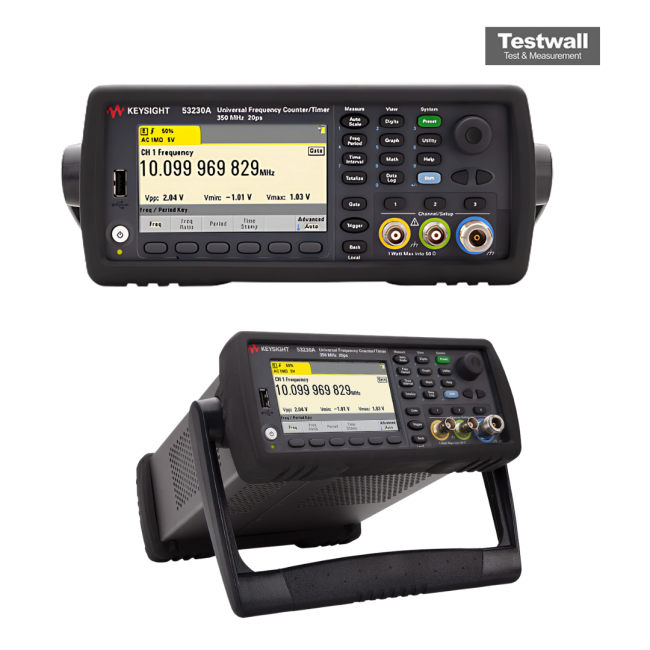

The Keysight (Agilent) 53230A is a universal frequency counter/timer with dual 350 MHz input channels and optional 6 GHz or 15 GHz third channel. It delivers 12 digits/second resolution and 20 psec time interval resolution with built-in mathematical analysis and a vivid graphical display.
It enables continuous, gap-free measurement for modulation domain analysis, includes BenchVue software, and supports USB, GPIB, and LXI-C/LAN interfaces. Optional Lithium-Ion battery support enhances portability.
Testwall can supply the used Keysight (Agilent) 53230A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 53230A.
