Keysight (Agilent)
Keysight (Agilent) 5342A
10Hz-18GHz Frequency Counter
10 MHz to 18 GHz Frequency Range
1 Hz Frequency Resolution
As fast as 25 ms Measurement Time
50 Ohms Input Impedance
+20 dBm (100 mW) Maximum Input Power
| Attribute | Value |
|---|---|
| Frequency Range | 10 MHz to 18 GHz |
| Frequency Resolution | 1 Hz |
| Measurement Time | As fast as 25 ms |
| Input Impedance | 50 Ohms |
| Maximum Input Power | +20 dBm (100 mW) |
| Sensitivity | -20 dBm (10 MHz to 18 GHz) |
| GPIB Interface | IEEE-488 compatible |
| Display | 9-digit LED numeric display |
| Power Requirements | 100/120/220/240 VAC, 48-66 Hz |
| Operating Temperature | 0°C to 55°C |
| Model | 5342A |
|---|

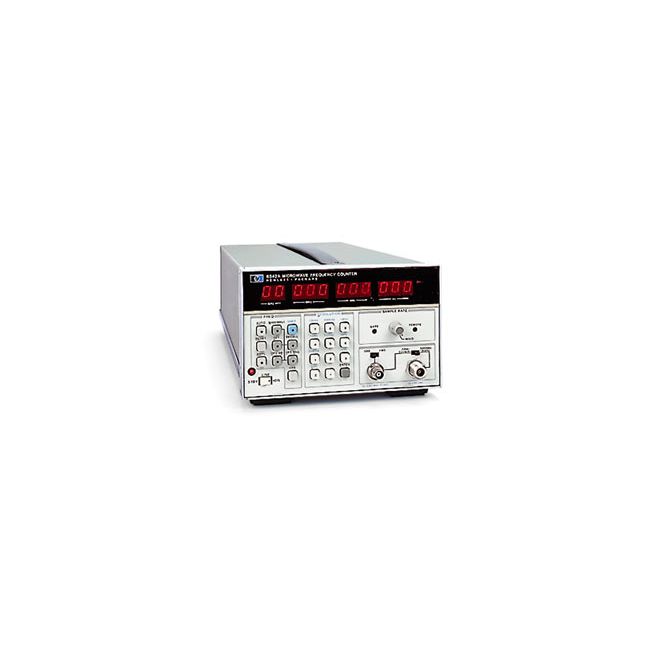

The Keysight (Agilent) 5342A Frequency Counter delivers automatic frequency measurement from 10Hz to 18GHz, with selectable 50Ω and 1MΩ input attenuation. It supports dual input ranges and withstands FM carriers up to 50MHz peak-to-peak, making it ideal for communications testing. With 1Hz resolution on an 11-digit sectional display, and microprocessor-driven math functions like IF offset, it’s a versatile and precise tool. Available options include high-stability timebase, amplitude measurements, dynamic range extension, D/A conversion, frequency extension to 24GHz, GPIB, and more.
It is especially suited for RF, telecom, and satellite applications where frequency stability, signal modulation tolerance, and compact design are critical. The intuitive interface and optional modules enhance adaptability across test scenarios.
Testwall can supply the used Keysight (Agilent) 5342A, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 5342A.
