Keysight (Agilent)

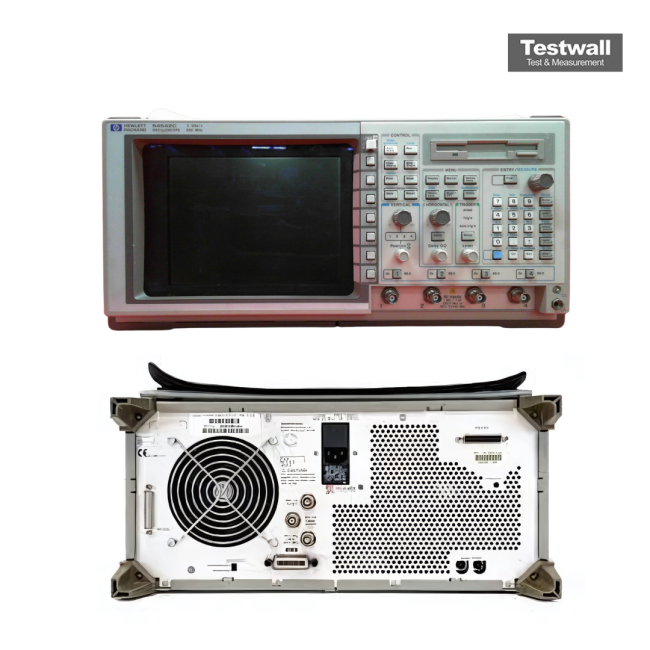

Keysight (Agilent) 54542C
4 Channel 500MHz 2GS/s Digitising Scope
500 MHz Bandwidth
4 Analog Channels Number of Channels
2 GSa/s (single-channel), 1 GSa/s (multi-channel) Sample Rate
2 Mpts per channel Memory Depth
8-bit Vertical Resolution
| Attribute | Value |
|---|---|
| Bandwidth | 500 MHz |
| Number of Channels | 4 Analog Channels |
| Sample Rate | 2 GSa/s (single-channel), 1 GSa/s (multi-channel) |
| Memory Depth | 2 Mpts per channel |
| Vertical Resolution | 8-bit |
| Vertical Sensitivity | 1 mV/div to 5 V/div |
| Time Base Range | 500 ps/div to 5 s/div |
| Input Impedance | 1 MΩ or 50 Ω |
| Display | 8.4-inch color display |
| Interface | GPIB, RS-232, Parallel Printer Port |
Keysight Technologies 54542C Options:
- 54542C - 001 - Telecommunications Masks Application (21 standard masks stored on flexible disk, supports ANSI, CCITT, and ISDN standards with automatic pass-fail comparisons)
| Model | 54542C |
|---|
The Keysight (Agilent) 54542C is a high-performance 4-channel digitizing oscilloscope featuring 500 MHz analog bandwidth and up to 2 GSa/s sampling rate on all channels. Designed for both analog and digital signal diagnostics, it offers a 1 ns peak detect, sequential single-shot acquisition, and 32 K acquisition memory per channel for reliable capture of high-speed transients. A vibrant color flat-panel display provides clear waveform visibility, while the built-in 3.5-inch floppy drive enables multi-format data storage.
Ideal for R&D and manufacturing test environments, the 54542C also includes FFT analysis, telecom mask testing (option), and advanced triggering for comprehensive signal analysis.
Testwall can supply the used Keysight (Agilent) 54542C, fully tested. With expert support and global delivery, Testwall ensures high-performance instrumentation with unmatched reliability and service quality. Please contact us directly if you need calibration or repair of the Keysight (Agilent) 54542C.
